Electro-Fashion Starter Pack Miniature Cell Holder Blue LEDs

83-00002731
KITRONIK-2731
ΚατασκευαστήςKitronik Part NumberKITRONIK-2731
Διαθέσιμο
Αποστολή σε 24 ώρες
€1340
Kitronik
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

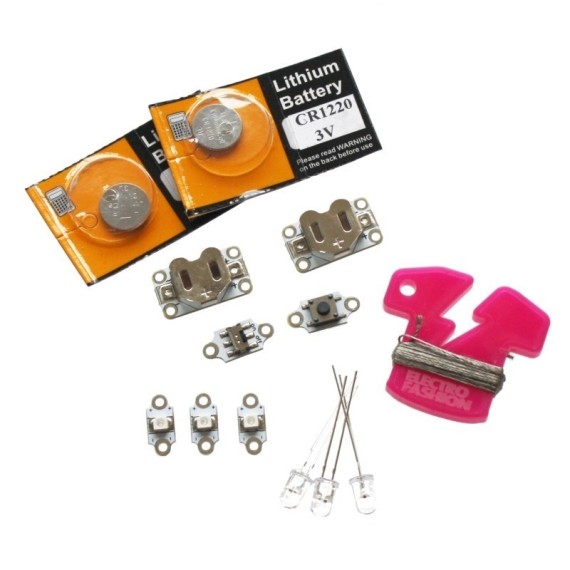

This pack is a great way to get started with E-Textiles. We have selected a number of products from our Electro-Fashion range, including three of our ultra-slim LEDs and two seperate power boards. There are enough components for you get started immediately to create some eye catching E-Textiles projects, the only limit is your imagination.

Physical characteristics:

  • All LED Lens Type: Water Clear
  • Ultra Slim Sewable LED Viewing Angle: 120 degrees
  • Blue Flashing LED Viewing Angle: 40 degrees

Electrical characteristics:

  • Ultra Slim Sewable LED Nominal Operating Voltage: 3V
  • Ultra Slim Sewable LED (Blue) Luminous Intensity: 300-450mCd (@20mA)
  • Ultra Slim Sewable LED (White) Luminous Intensity: 1600-1800mCd (@20mA)
  • Blue Flashing LED Forward Voltage Drop: 3V to 5V
  • Blue Flashing LED Max Forward Current: 20mA
  • Blue Flashing LED Luminous Intensity: 3500mCd (@20mA)
  • White Flashing LED Forward Voltage Drop: 3V to 4.5V
  • White Flashing LED Max Forward Current: 20mA
  • White Flashing LED Luminous Intensity: 8400mCd (@20mA)
  • Slide Switch Maximum Switch Rating Voltage DC: 6V
  • Slide Switch Maximum Switch Rating Current: 0.03A (30mA)
  • Push Button Switch Maximum Switch Rating Voltage DC: 12V
  • Push Button Switch Maximum Switch Rating Current: 0.05A (50mA)
  • CR1220 Battery Voltage: 3V
  • CR1220 Battery Capacity: 40mA/h
  • Conductive Thread Resistance: Approx 40 Ohms/m
  • Conductive Thread Denier: 18
  • Everything you need to complete two projects
  • Enough Electro-Fashion components to get started immediately with E-Textiles
  • Full instructions for assembly
  • Great project ideas and tutorials
Κατασκευαστής
Kitronik
Part Number
KITRONIK-2731
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.001kg
