ESP8266 WiFi Module

από OEM

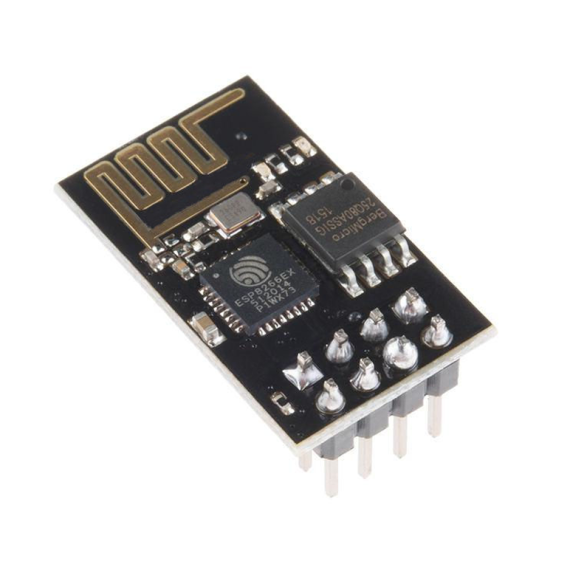

The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network.
19-00012109
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Part Number: ESP8266-01
Χώρα Προέλευσης: Κίνα
Εξαντλημένο
Το προϊόν δεν είναι διαθέσιμο
Διαθέσιμο στο φυσικό κατάστημα
3.60
Χωρίς ΦΠΑ 2.90

Συναινώ ώστε η εταιρεία (GRobotronics) να προσθέσει την διεύθυνση ηλεκτρονικού μου ταχυδρομείου στην λίστα ώστε να λάβω ενημέρωση όταν το προϊόν θα είναι ξανά διαθέσιμο. Μόλις το προϊόν γίνει ξανά διαθέσιμο θα λάβω αυτόματα ενημέρωση στο email αυτό και αμέσως θα αφαιρεθεί από την συγκεκριμένη λίστα.

Το email σου θα χρησιμοποιηθεί αποκλειστικά για τον σκοπό αυτό και καμία άλλη ενημέρωση δεν θα λάβεις. Θα είναι ορατό μόνο από συγκεκριμένους εξουσιοδοτημένους υπαλλήλους της εταιρείας.

Έχετε το δικαίωμα σε περίπτωση κατά την οποία θεωρείτε ότι η επεξεργασία που γίνεται δεν είναι σύμφωνη με τα ανωτέρω να αναζητείτε την προστασία της Αρχής Προσωπικών Δεδομένων και να ζητήσεις να διαγράψουμε ή να μεταβάλλουμε τα δεδομένα σου. Είμαστε υποχρεωμένοι σύμφωνα με τον κανονισμό της ΕΕ για την Προστασία των Γενικών Προσωπικών Δεδομένων να σε ενημερώσουμε για αυτό το δικαίωμα. Έχετε την δυνατότητα να επικοινωνείτε όποτε επιθυμείτε με την εταιρεία ώστε να ενημερωνόσαστε σχετικά με τα προσωπικά σας δεδομένα στο email [email protected]

ΑΓΑΠΗΜΕΝΑ ΣΥΓΚΡΙΣΗ

ΠΕΡΙΓΡΑΦΗ

The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get about as much WiFi-ability as a WiFi Shield offers (and that’s just out of the box)! The ESP8266 module is an extremely cost effective board with a huge, and ever growing, community.

This module has a powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existance interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions, and requires no external RF parts.

There is an almost limitless fountain of information available for the ESP8266, all of which has been provided by amazing community support. In the Documents section below you will find many resources to aid you in using the ESP8266, even instructions on how to transforming this module into an IoT (Internet of Things) solution!

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Είδος Περιφερειακού:
  • WiFi
Κατασκευαστής
:
OEM
Part Number:
ESP8266-01
Πρωτόκολλο:
  • Wifi
Μικτό Βάρος:
0.002kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • 802.11 b/g/n
  • Wi-Fi Direct (P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLLs, regulators, DCXO and power management units
  • +19.5dBm output power in 802.11b mode
  • Power down leakage current of <10uA
  • Integrated low power 32-bit CPU could be used as application processor
  • SDIO 1.1 / 2.0, SPI, UART
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)

  • The ESP8266 Module is not capable of 5-3V logic shifting and will require an external Logic Level Converter. Please do not power it directly from your 5V dev board.
