Wireless NIC for Jetson Nano WiFi / Bluetooth - AC8265

31-00016578
Wireless-AC8265
CompanyWaveshare Part NumberWireless-AC8265
In Stock
Ships in 24 Hours
1680
Our quantity discounts:
Quantity
10+
Price
14.76
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

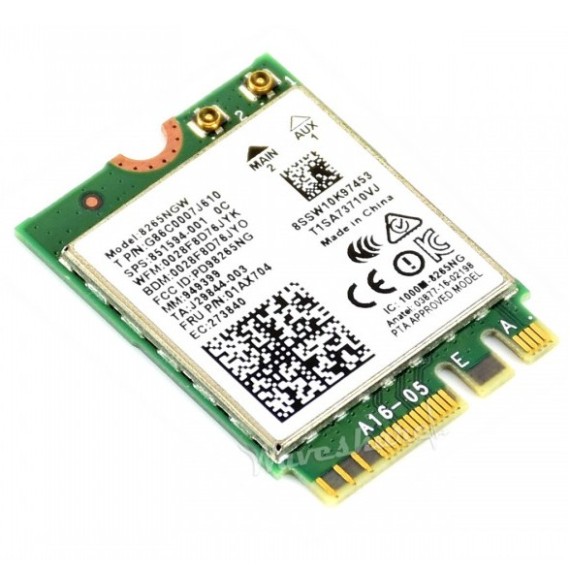

This is a dual mode wireless NIC module applicable for Jetson Nano, supports 2.4GHz / 5GHz dual band WiFi and Bluetooth 4.2.

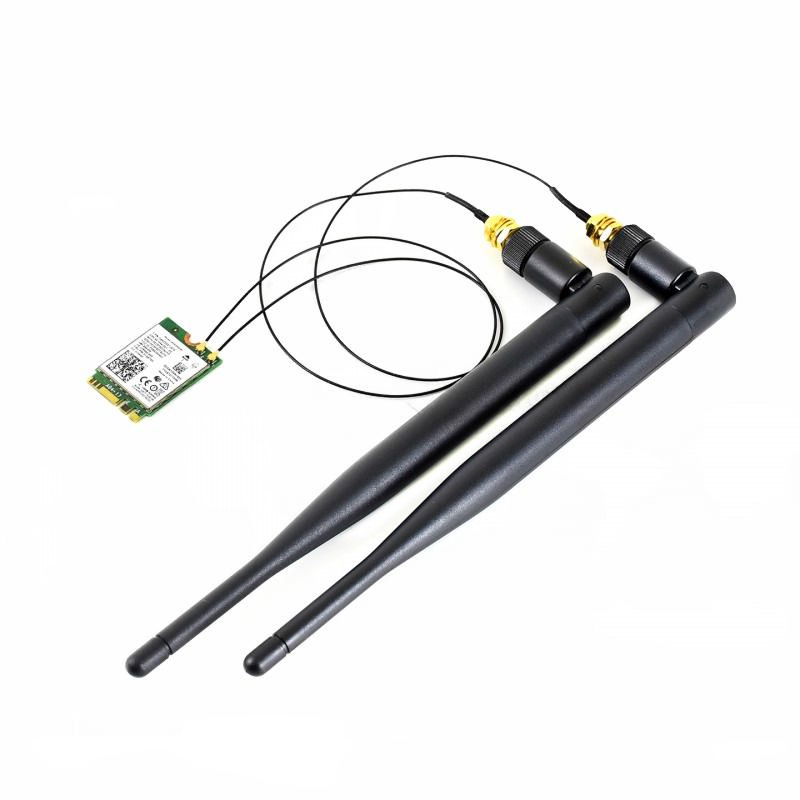

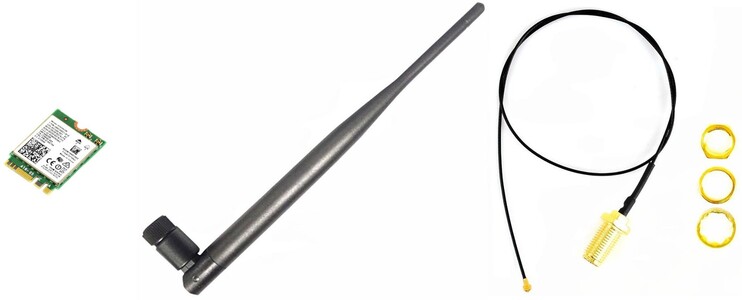

THE PACKAGE INCLUDES

  1. Wireless-AC8265 x1
  2. Antenna x2
  3. IPEX to SMA cable x2
123



NOTES

  • The new Jetson Nano 2GB Developer Kit is NOT supported.

  • Chip: Intel 8265AC
  • Bands: 2.4GHz / 5GHz
  • Speed: 300Mbps / 867Mbps
  • WiFi protocol: 802.11ac
  • Bluetooth version: 4.2

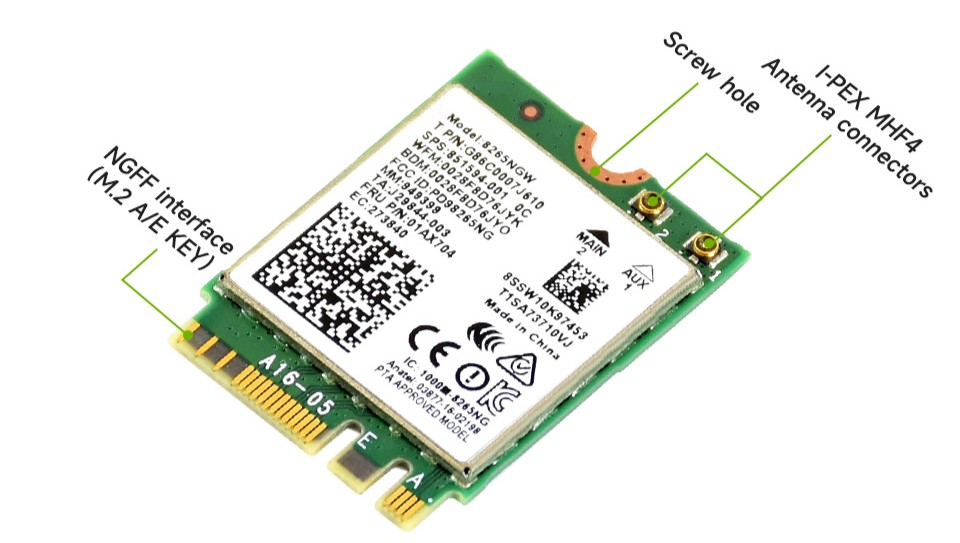

  • NIC interface: NGFF (M.2)
  • Antenna interface: IPEX connector
  • Supported OS: Linux, Windows 10/8.1/8/7

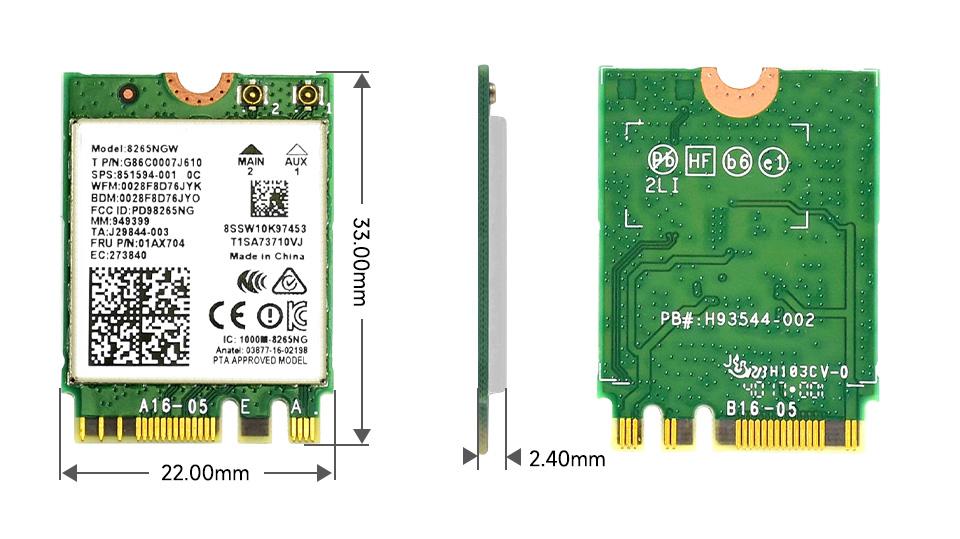

  • Dimensions: 22x30x2.4mm
Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Waveshare
G. Weight
0.001kg
