Fermion AS7341 11-Channel Visible Light Sensor

από DFROBOT
We live in a colorful world, but how much do you really know about color? You eyes may deceive you, while the sensors don’t lie. This AS7341 11-Channel...
25-00016323
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0365
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
19.90
Χωρίς ΦΠΑ 16.05
+

ΠΕΡΙΓΡΑΦΗ

We live in a colorful world, but how much do you really know about color? You eyes may deceive you, while the sensors don’t lie. This AS7341 11-Channel Visible Light Sensor-Breakout can tell you the truth about color.

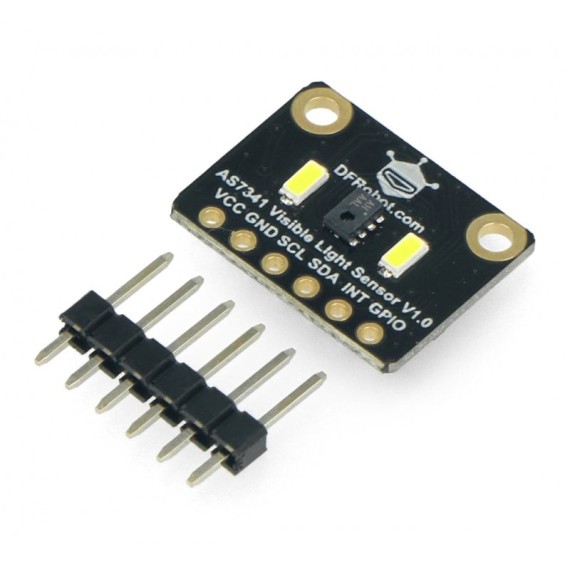

DFRobot AS7341 11-Channel Visible Light Breakout Board employs the new generation of AS7341 spectral sensor IC launched by the well-known AMS company. The sensor features eight channels for the visible light, one channel for near-IR, and one channel without a filter. Also it integrates a dedicated channel to detect ambient light flicker. Besides that, this sensor comes with 6 independent 16-bit ADC channels for data processing in parallel. The two on-board extra-bright LEDs can supply light in dark environment.

RGB Color Sensor vs AS7341 Sensor



  Yellow LED

WS2812 Simulated Yellow

Recognition result of RGB color sensor

Red+Green

Red+Green

Recognition result of  AS7341 visible light sensor

Yellow

Red+Green

You can click to find information about visible light.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0365
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Χρώματος
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • I2C

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power Supply: 3.3V~5V
  • Visible Light Detection Range: F1(405-425nm), F2(435-455nm), F3(470-490nm), F4(505-525nm), F5(545-565nm), F6(580-600nm), F7(620-640nm), F8(670-690nm)
  • Operating Current(LED Off): <5mA
  • LED Driving Current: Class 1-20 (4-42mA)
  • I2C Address: 0x39
  • Operating Temperature Range: -30℃~85℃
  • Operating Humidity Range: 5%RH~85%RH
  • Dimension: 18x14mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • 8 optical channels covering the visible spectral range
  • 50Hz and 60Hz ambient light flicker detection
  • 6 independent 16-bit ADC channels

Applications

  • High accuracy color detection and matching
  • Color mixing effect detection
  • Lighting color temperature adjustment
  • Lighting atmosphere control
  • Modern plant cultivation
