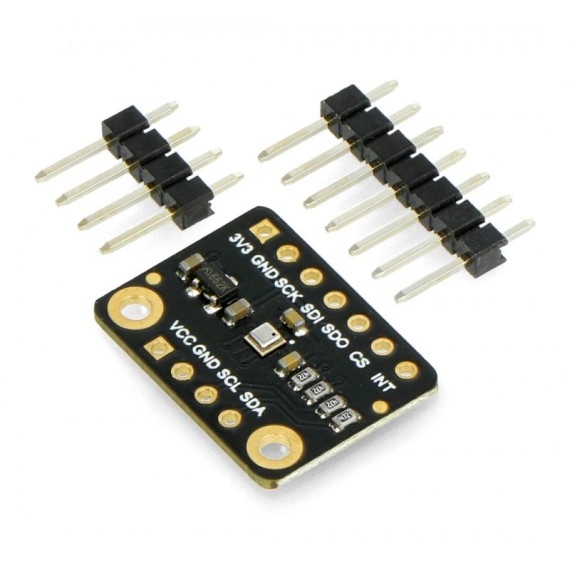

Fermion BMP390L Digital Barometric Pressure Sensor

25-00016342
SEN0423
ΚατασκευαστήςDFRobot Part NumberSEN0423
Εξαντλημένο
€1360
DFRobot
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

BMP390L is an industrial-grade dedicated digital barometric pressure sensor newly developed by Bosch. It has extremely high-temperature stability, low drift, low power consumption (sleep current is only 54μA, the highest power consumption in measurement mode is 650μA) and low noise impact (less than 0.02Pa).

The maximum deviation of the absolute accuracy of this product is less than 50Pa, and the relative accuracy can reach ±3Pa (equivalent to 25cm), which is 166.7% higher than the previous generation.

In addition, with a 12-month long-term stability deviation of only 16Pa, the new model's long-term stability performance far exceeds that of the previous generation. Accurate, stable, low-power height detection makes this product very suitable for indoor positioning applications that cannot be covered by GPS signals.

Since it offers extended availability up to 10 years, you can use this product with peace of mind.

Connection Diagram

  • Working Voltage: 3.3V
  • Working Current:
    • sleep mode (54uA)
    • normal mode (357~650uA)
  • Interface Mode: I2C/SPI
  • I2C Address: 0x77 (default address)/0x76 (optional: SDO pin connects to GND)
  • Pressure Sensing Range: 300~1250 hPa
  • Relative Accuracy: ±0.03hPa (equivalent to 25cm) (@700-1100hPa, 25-40°C)
  • Absolute Accuracy: ±0.50hPa
  • Temperature Deviation Coefficient: ±0.6Pa/K (@900hPa, 25-40°C)
  • Long-term Stability: ±0.16hPa/year
  • ODR Accuracy: ±2~±12%
  • Start-up Time: 2ms
  • Operating Temperature Range: -40℃~+85℃ (Full precision measurement can be used under 0℃~+65℃)
  • Module Size: 15x20mm

  • High precision (absolute deviation ＜50Pa, relative accuracy ＜3Pa)
  • High long-term stability (±16Pa/year)
  • Extremely high temperature stability and low drift characteristics
  • Low power consumption (sleep current: 54uA, working current ＜650uA)

Applications

  • Asset tracking & navigation(floor detection)
  • Water-level measurement
  • Vertical velocity indication(e.g. rise/sink speed)
  • Enhancement of GPS navigation
  • Outdoor navigation & applications
  • Health care applications(e.g. spirometry)
  • AR & VR applications
  • Context awareness
  • Flight stabilization
  • Clogging detection
Κατασκευαστής
DFRobot
Part Number
SEN0423
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται με εγγύηση
Καθ. Βάρος
0.017kg
Τύπος Αισθητήρα
  • Βαρομετρικής πίεσης
Τυπική Τάση Εισόδου
  • 3.3VDC
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • I2C
  • SPI
