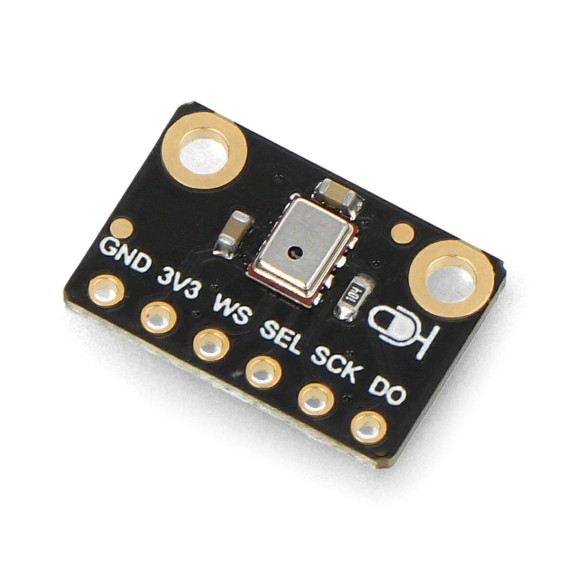

Fermion I2S MEMS Microphone Breakout

από DFROBOT
This digital I2S MEMS Microphone works well with microcontrollers with I2S audio outputs like ESP32. Compared with traditional analog ones, this microphone...
25-00016146
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0526
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
6.40
Χωρίς ΦΠΑ 5.16
+

ΠΕΡΙΓΡΑΦΗ

This digital I2S MEMS Microphone works well with microcontrollers with I2S audio outputs like ESP32. Compared with traditional analog ones, this microphone features low noise, high sensitivity & reliability, and other excellent performances, which make it applicable to projects like voice recognition, recording, AI learning, Bluetooth audio transmission, and so on.

This module uses surface mount MEMS I2S microphone sensor with top port, no components at the bottom, which can be embedded into various applications conveniently. Besides, DFRobot provides users with Arduino library for this product to allow them easily get started on ESP32.

Connection Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0526
Μικτό Βάρος:
0.02kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly
:
Ναι
Τύπος Αισθητήρα:
  • Ήχου
Τυπική Τάση Εισόδου:
  • 3.3VDC
Διασύνδεση:
  • Ψηφιακή

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: DC 3.3V
  • Microphone Packaging Process: MEMS
  • Direction: Omnidirectional
  • Data Port: I2S
  • Sound Pressure Level: 140dB
  • Signal-to-noise Ratio: 59dB
  • Dimension: 11x16mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Small in size
  • Low power consumption & high performance
  • I2S digital output with low noise
  • MEMS sensor with high reliability
  • Provides Arduino library for working on ESP32

Applications

  • Voice recognition
  • AI learning
  • Recording
  • Bluetooth audio transmission
  • Smart home audio projects
