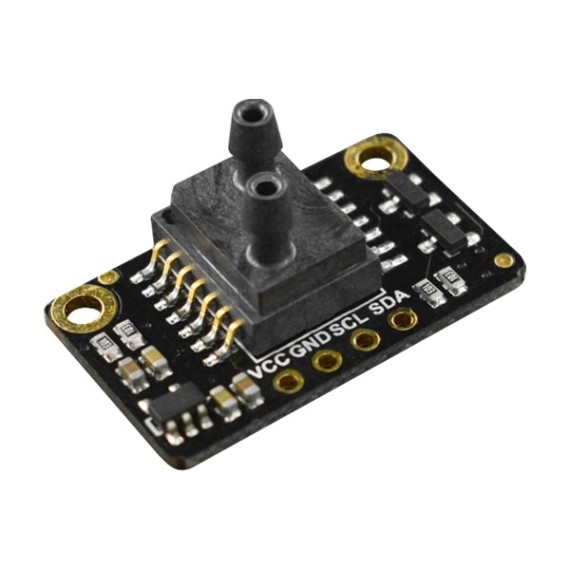

Fermion LWLP5000 Differential Pressure Sensor - ±500pa

25-00016318
SEN0343
Εξαντλημένο
4990
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This high-resolution differential pressure breakout board with I2C communication is used to measure the difference in pressure across two points on a device. A high-performance MEMS pressure chip and a special conditioning chip are encapsulated inside the sensor. It will give you a comparative measurement between two points. Besides, the sensor IC adopts a unique multi-stage temperature-compensation algorithm to reduce the effect of the environment on the sensor output.



ΣΗΜΕΙΩΣΕΙΣ

  • In order to ensure the measurement resolution and the sensor life, please use the sensor in the clean air. Do not let water enter the nozzle of the sensor, or it will cause damage to the sensor.

  • Operating Voltage: 3.3V~5V
  • Measuring Range: ±500pa(±1.5%FS)
  • Operating Current: <5mA
  • Communication Mode: I2C
  • I2C Address: 0x00
  • Operating Temperature Range: -40℃~85℃
  • Temperature-compensation Range: -5℃~65℃
  • Dimension: 14.5Χ24mm

  • Multi-stage temperature-compensation algorithm
  • I2C digital output
  • High resolution

Applications

  • Home medical care equipment
  • Portable medical equipment
  • Medical monitoring
  • Industrial control
  • Central ventilation system
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
DFRobot
Μικτό Βάρος
0.01kg
Τύπος Αισθητήρα
  • Πίεσης
Τυπική Τάση Εισόδου
  • 3.3VDC
  • 5VDC
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • I2C
