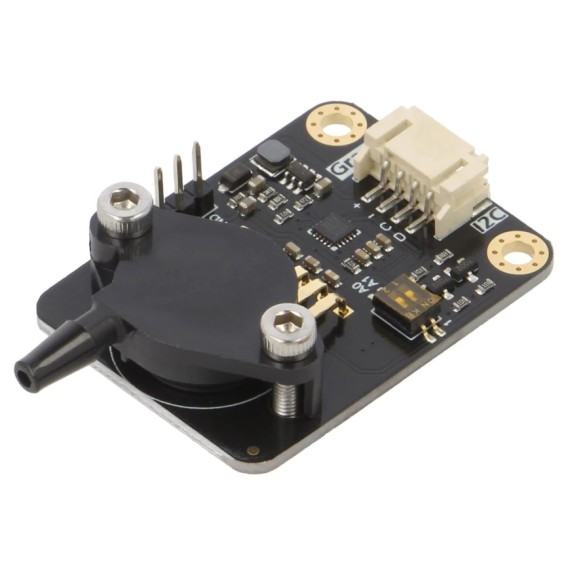

Gravity Air Pressure Sensor (15-700kPa) - I2C - MPX5700AP

25-00016242
SEN0456
Διαθέσιμο
Αποστολή σε 24 ώρες
7990
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This is a Arduino compatible pressure sensor module with a measuring range of 15-700kPa, which supports I2C digital output and can be calibrated according to known pressure values and allows fast and accurate measurement of pressure values in pipelines or other environments.

It is suitable for pipeline air pressure detection, natural science experiments and other scenarios.

  • Detection of physical quantities: Air pressure
  • Working voltage: 3.3~5.5V DC
  • Power dissipation: 0.06W(5V)
  • Output signal: I2C output(0~3V)
  • Measuring range: 15-700kPa
  • Deviation:<2.5%
  • Resolution ratio: ≤1kPa
  • Working temperature: 0~85℃
  • Circuit board size: 32x43mm

  • Supports I2C digital output
  • Can fast and accurate measurement of pressure values

Applications

  • Pipeline air pressure detection
  • Natural science experiments
Κατασκευαστής
DFROBOT
Μικτό Βάρος
0.01kg
Τύπος Αισθητήρα
  • Πίεσης
Τυπική Τάση Εισόδου
  • 3.3VDC
  • 5VDC
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • I2C
