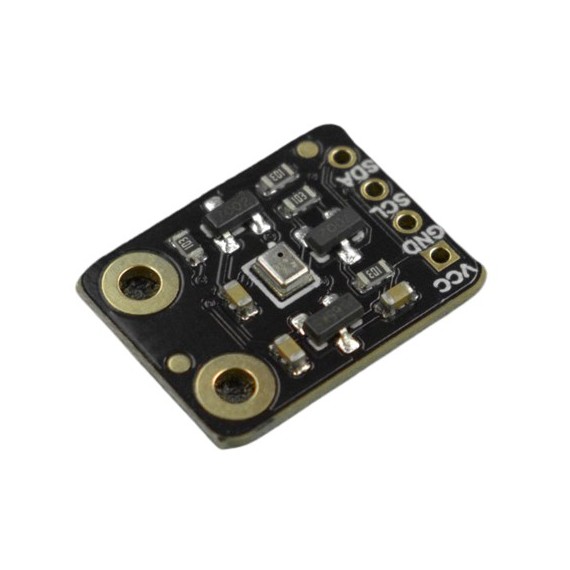

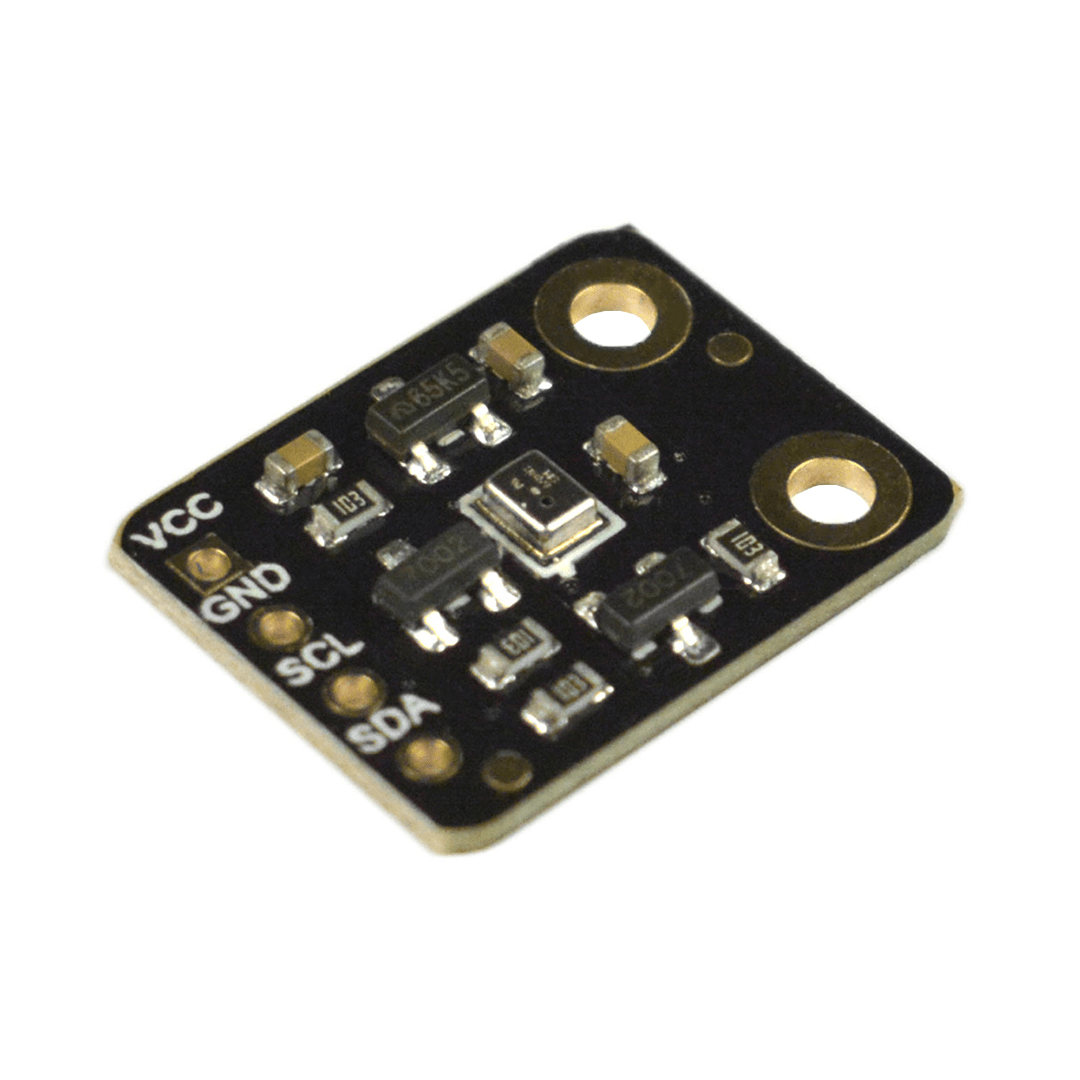

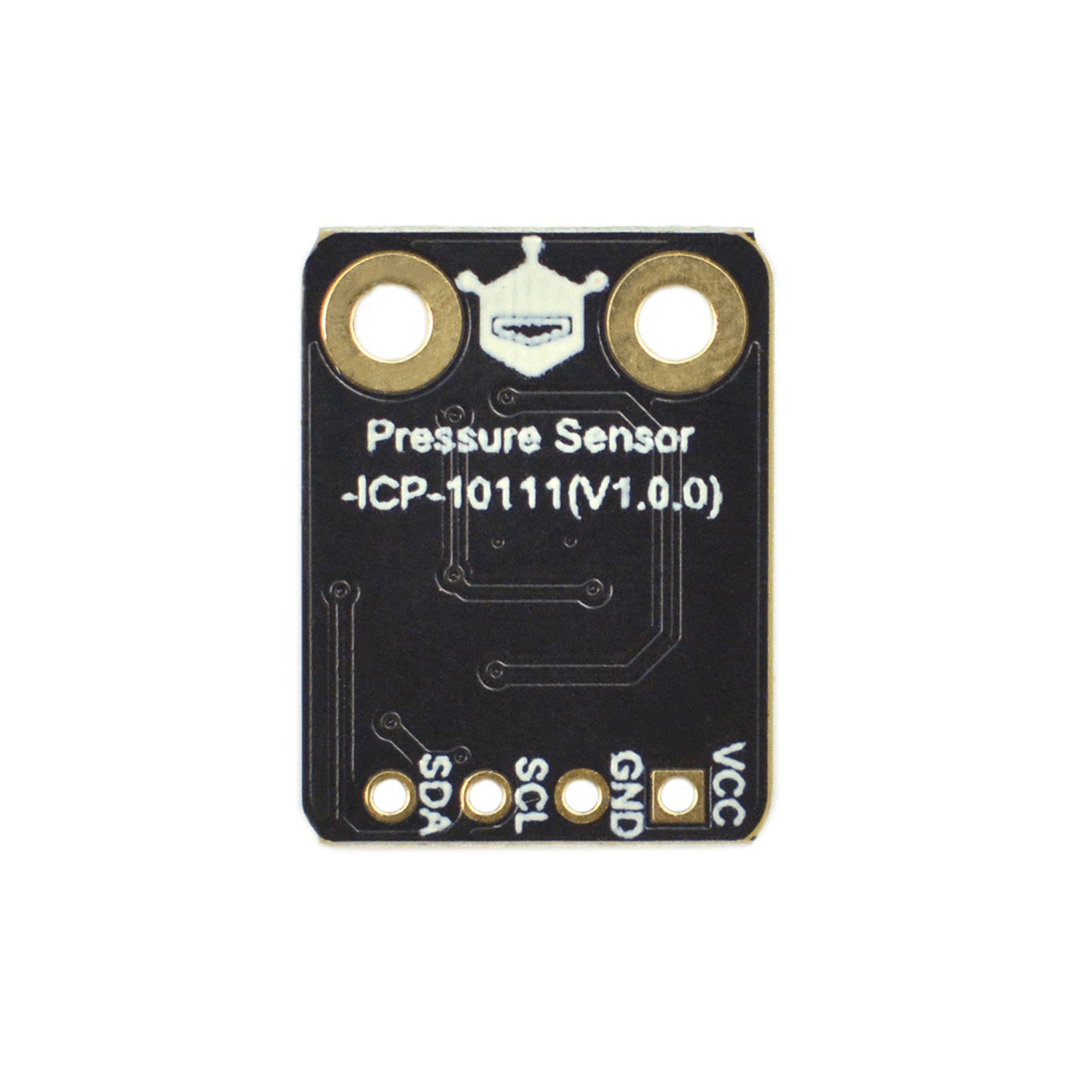

Fermion Pressure Sensor - ICP-10111

by DFROBOT
This barometric pressure temperature sensor is equipped with TDK's newly launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor...
25-00016633
Gross Weight: 0kg
Company: DFROBOT
Part Number: SEN0516
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
9.80
Without VAT 7.90
+
WISHLIST COMPARE

DESCRIPTION

This barometric pressure temperature sensor is equipped with TDK's newly launched ICP-10111 barometric pressure sensor, which is based on MEMS capacitor technology to achieve ultra-low power consumption, industry-leading relative accuracy, and temperature offset coefficient.

The Fermion: ICP-10111 barometric pressure temperature sensor can measure the pressure difference with an accuracy of ±1Pa, an accuracy enabling altitude measurement differentials as small as 8.5 cm, less than the height of a single stair step.

The pressure noise can be as low as 0.4Pa, and the read data will be more stable. There is a built-in temperature sensor for air pressure compensation. The ICP-10111 offers a temperature coefficient offset of ±0.5 Pa/°C, more stable for long-term use. The combination of high accuracy, low power, and temperature stability in a small footprint enables higher performance barometric pressure sensing for sports activity identification, mobile indoor/outdoor navigation, and altitude-hold in drones.

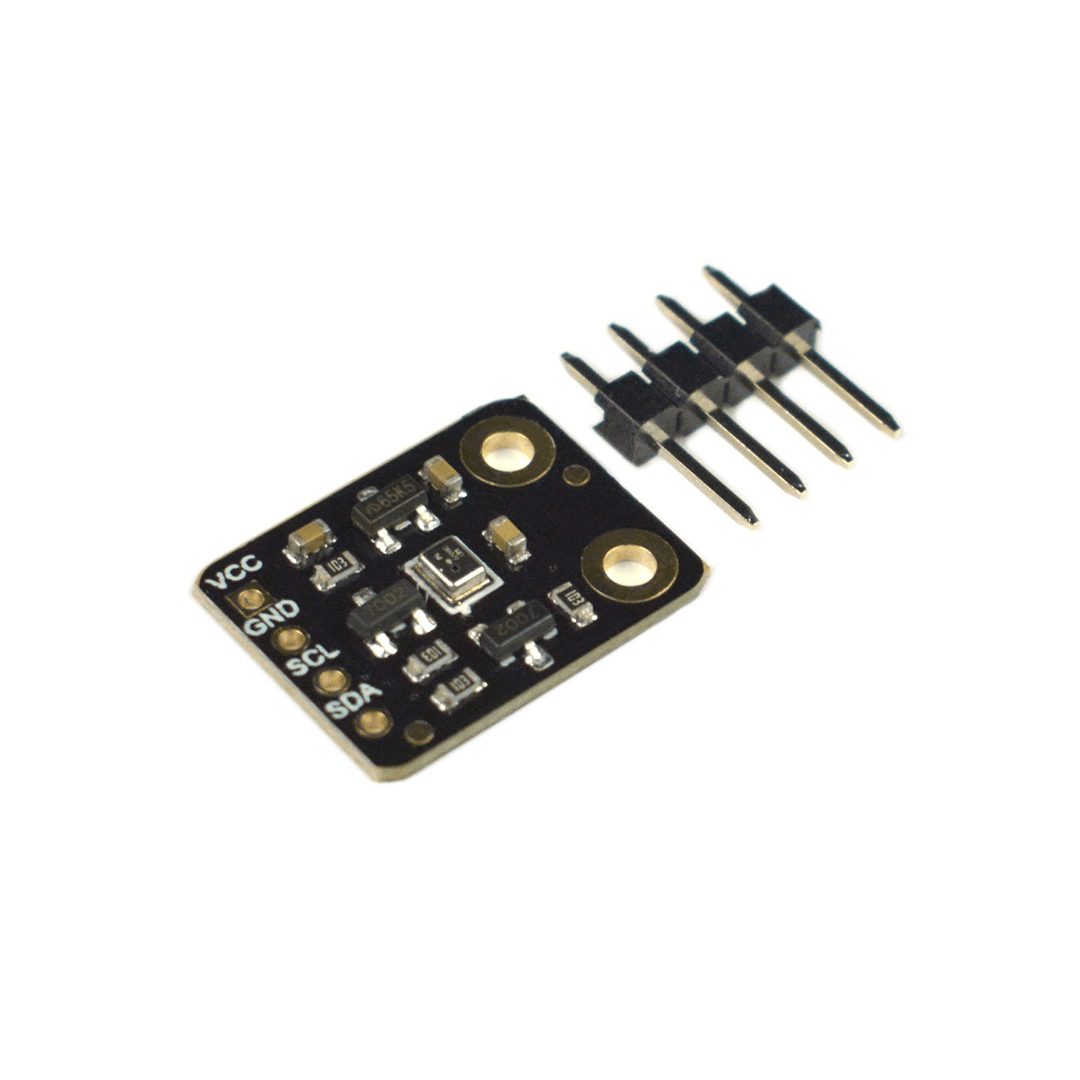

THE PACKAGE INCLUDES

  • 1x Fermion: ICP-10111 Pressure Sensor
  • 1x 2.54-4P Black Single-row Pin Connector

Connection Diagram



SPECIFICATIONS

Sensor Type:
  • Barometric Pressure
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
2mA
Interface:
  • Digital
Communication Protocol:
  • I2C

SPECIFICATIONS

  • Working Voltage: 3.3V~5.5V
  • Working Current: <2mA
  • Communication: I2C
  • I2C Address: 0x63
  • Air Pressure Measurement Range: 30~110 kPa
  • Relative Barometric Pressure Measurement Accuracy: ±0.01hPa (950hPa~1050hPa, 25℃)
  • Absolute Barometric Pressure Measurement Accuracy: ±1hPa (950hPa-1050hPa, 0℃~65℃)
  • Temperature Coefficient Offset: ±0.5 Pa/℃ (100kPa, 25℃~45℃)
  • Absolute Temperature Measurement Accuracy: ±0.4℃
  • Working Temperature: -40℃~85℃

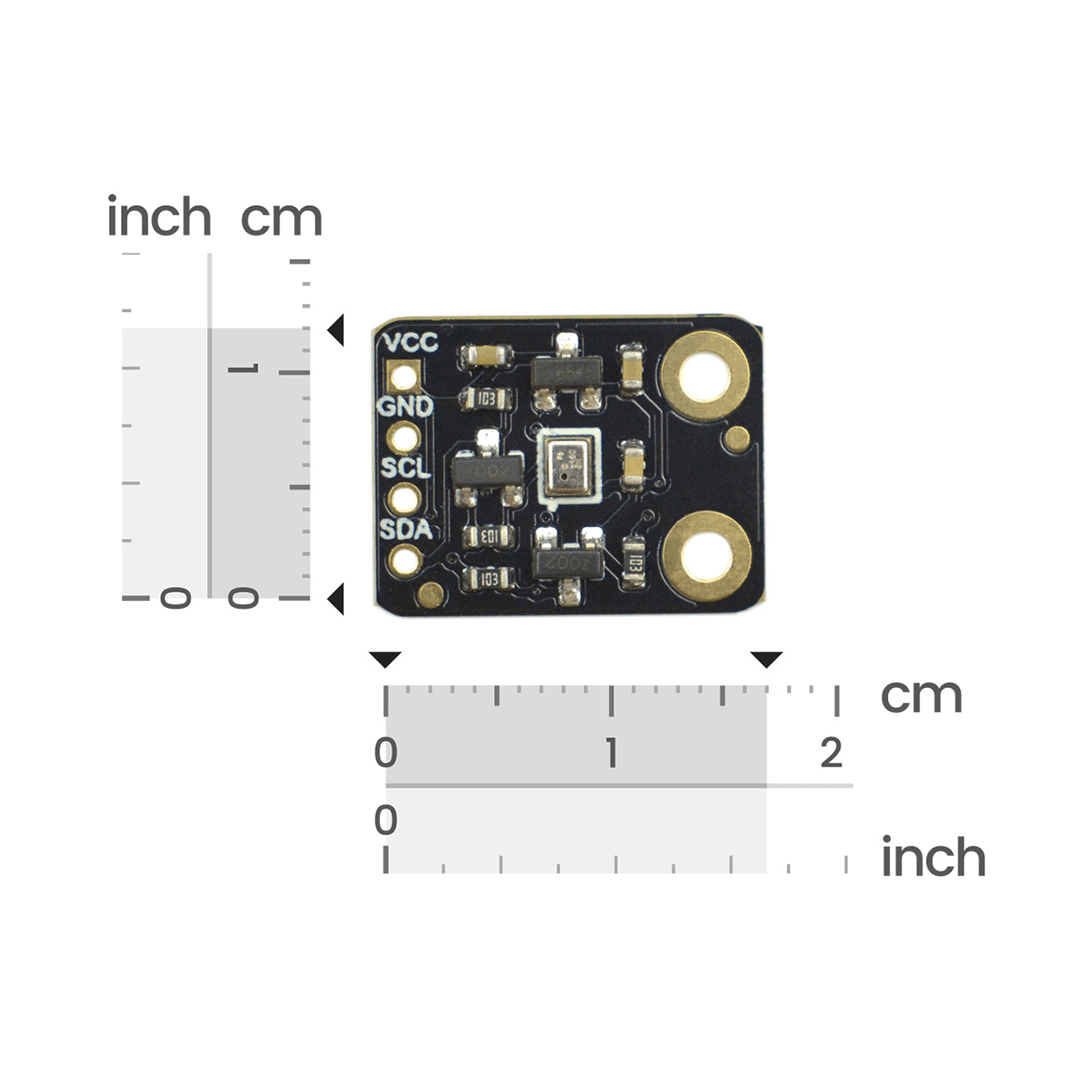

  • Dimensions: 16.5x12.5mm

FEATURES

  • Relative accuracy ±1Pa, as small as 8.5cm height measurement difference
  • ±0.5Pa/℃ temperature coefficient offset, high stability for long-term use
  • 0.4Pa pressure noise, more stable data

APPLICATIONS

  • UAV height control
  • Indoor navigation and positioning
  • Vertical speed measurement
  • Enhancing reality and virtual display applications
