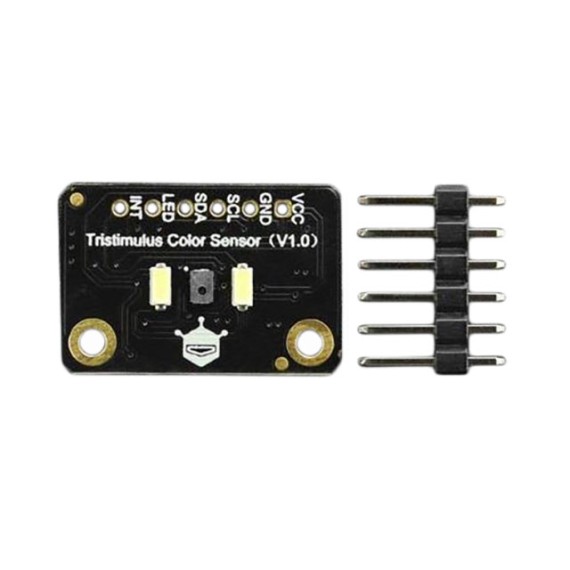

Fermion TCS3430 Tristimulus Color Sensor

25-00016333
SEN0403
Διαθέσιμο
Αποστολή σε 24 ώρες
1860
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

Devices with True Tone technology like Apple iPad Pro, iPhone, and Macs usually feature sensors that measure the ambient light colour and brightness. The device then uses this information to automatically adjust its display, so it can correct white points and illumination based on your environmental lighting in order to render the right kinds of white under any conditions. And XYZ Tristimulus Color Sensor plays an important role in this technology.

TCS3430 features advanced digital ambient light sensing(ALS) and CIE 1931 tristimulus color sensing(XYZ). CIE1931 XYZ Tristimulus model is a kind of standard based on three different human cone cell types. The CIE XYZ color space encompasses all color sensations that are visible to a person with average eyesight. The spectral response of TCS3430 is almost the same as that of human eyes, which can realize the high-precision measurement of illumination and color temperature. What you see is what you measured!

The TCS3430 Tristimulus Color Sensor is ideally suited for the use in smartphone applications to improve color measurement and intensity of ambient light conditions. Also, it can be used in scenarios requiring a true-color viewing experience like online shopping(product color matching, reducing the return rate caused by color difference of images and real product).

You can learn more about the CIE 1931-XYZ system here: https://en.wikipedia.org/wiki/CIE_1931_color_space

  • Power Supply: 3.3V~5V
  • Operating Current: <5mA
  • LED Operating Current: <15mA
  • I2C Address: 0x39
  • Operating Temperature Range: -30℃~85℃
  • Dimension: 22x15mm

  • XYZ Tristimulus Filter
  • Capable of ±10% illuminance and correlated color temperature accuracy
  • Wide dynamic range and high sensitivity
  • Programmable gain and integration time

Applications

  • Color detection
  • Brightness detection
  • White balance detection
  • Color temperature measurement
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
DFRobot
Μικτό Βάρος
0.01kg
Τύπος Αισθητήρα
  • Χρώματος
Τυπική Τάση Εισόδου
  • 3.3VDC
  • 5VDC
Διασύνδεση
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας
  • I2C
