Fermion Voice Recorder Module

από DFROBOT
Wanna buy a simple & practical voice recorder? This one is right for you! The voice recorder module supports 4 controlling modes (Arduino, AT command,...
25-00016330
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0745
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
8.60
Χωρίς ΦΠΑ 6.94
+

ΠΕΡΙΓΡΑΦΗ

Wanna buy a simple & practical voice recorder? This one is right for you! The voice recorder module supports 4 controlling modes (Arduino, AT command, on-board buttons, and ADKEY), and multi-segment voice recording.

You can directly press the on-board buttons to record or play voice without using a controller. Moreover, the 16MB storage on the module can store up to 40 minutes of voice recording and the recorded files can be copied to your computer via the type-C interface.

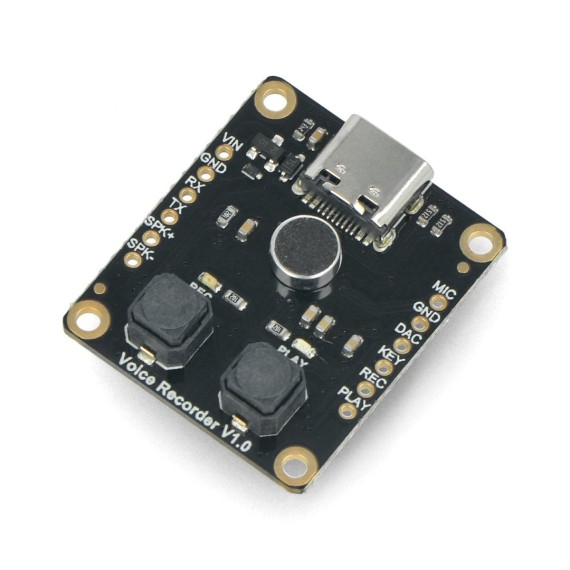

Board Overview

Connection Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0745
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly
:
Ναι
Τύπος Αισθητήρα:
  • Ήχου
Τυπική Τάση Εισόδου:
  • 3.3VDC
Διασύνδεση:
  • Ψηφιακή

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 3.3~5V
  • Operating Current: >10mA
  • Storage: 16MB
  • Sampling Rate: 48kbs
  • Communication: UART
  • Dimension: 26x30mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Support about 40 minutes voice recording
  • Support multi-segment voice recording
  • Voice recording/playing via on-board buttons
  • On-board power amplifier
  • Support analog U-disk

Applications

  • DIY Plush Toys
  • Handmade Personalized Gift
  • Event Voice Memo

ΑΡΧΕΙΑ
