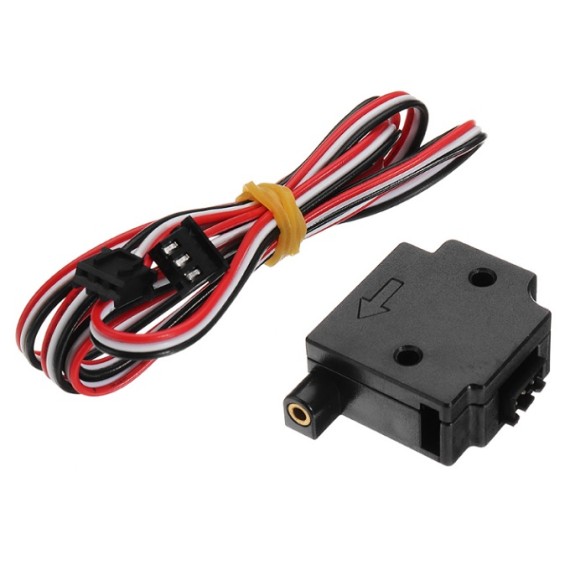

Filament Detection Module - Black 1.75mm

by OEM
Newly designed smart module for detecting the status of the use of filament.  To check the filament is whether run out or not, it automatically stops the...
14-00012887
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
4.80
Without VAT 3.87
+
WISHLIST COMPARE

DESCRIPTION

Newly designed smart module for detecting the status of the use of filament. To check the filament is whether run out or not, it automatically stops the 3D Printer when the filament runs out, so you will have a chance to supplement the filament which makes sure you won't print a incomplete printing. Built-in wearable copper in the feed inlet and outlet to extend the life span.

EXTRA SPECIFICATIONS

  • Filament Size: 1.75mm
  • Mounting Hole Size: 3.5mm
  • Mounting Hole Distance: 20mm
  • Cable Length: 1m

Dimensions

Connection

Used with Lerdge board:

When there is filament in, the green light in the module keeps lighting. And when the filament is exhausted, the green light goes off, then the motherboard executes the pause command operation, after the replacement of the filament can continue to print.
Wiring: Connect the module to the M-sensor port on the motherboard.

Used with other motherboards:

The filament detection module uses the level transition detection method. When with filament in, the detection level signal should be high, and when no filament, the filament port level signal goes low. When the system detects a determined transition from high to low level, it will regard it as the filament exhausted, then the board executes the pause command operation, and after the replacement of the filament, it will continue to print.

Contents

  • 1x Filament Detection Module
  • 1x Cable
