Gravity Air Quality Sensor Laser PM2.5

by DFROBOT
M2.5 laser dust sensor is a digital universal particle concentration sensor,it can be used to obtain the number of suspended particulate matter in a unit...
25-00016107
Company: DFROBOT
Part Number: SEN0177
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
63.90
Without VAT 51.53
+
WISHLIST COMPARE

DESCRIPTION

M2.5 laser dust sensor is a digital universal particle concentration sensor,it can be used to obtain the number of suspended particulate matter in a unit volume of air within 0.3 to 10 microns, namely the concentration of particulate matter, and output with digital interface, also can output quality data of per particle.

The sensors can be embedded in a variety of concentrations of environment-related instruments suspended particulate matter in the air ,to provide timely and accurate concentration data.

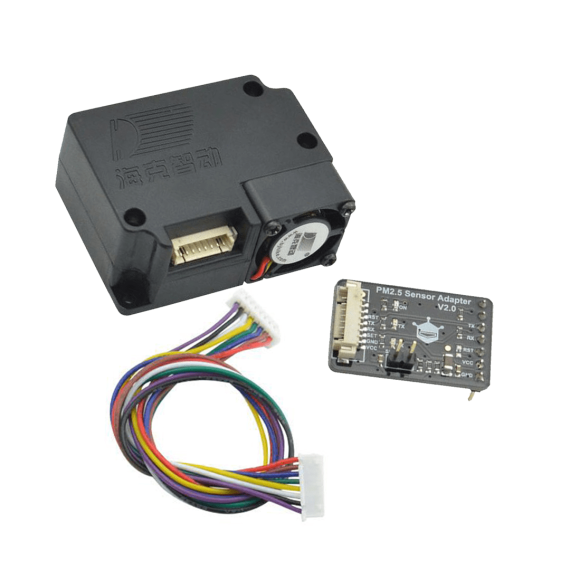

THE PACKAGE INCLUDES

  • 1x PM2.5 laser dust sensor
  • 1x PM2.5 sensor adapter
  • 1x sensor adapter cable

SPECIFICATIONS

Sensor Type:
  • Dust
  • Gas
Typical Input Voltage:
  • 5VDC
Oparating Current:
120mA
Interface:
  • Digital
Communication Protocol:
  • I2C

SPECIFICATIONS

  • Voltage: 4.95 ~ 5.05V
  • Maximum electric current: 120mA
  • Measuring pm diameter: 0.3~1.0/1.0~2.5/2.5~10 (um)
  • Measuring pm range: 0~1000 ug/m3
  • Standby Current: ≤200 uA
  • Response time:  ≤10 s
  • Operating temperature range:  -20 ~ 50C
  • Operating humidity range: 0 ~ 80% RH
  • Maximum size: 46 * 35 * 20mm (1.82 x 1.38 x 0.79 inches)
  • MTBF: > = 5 years
