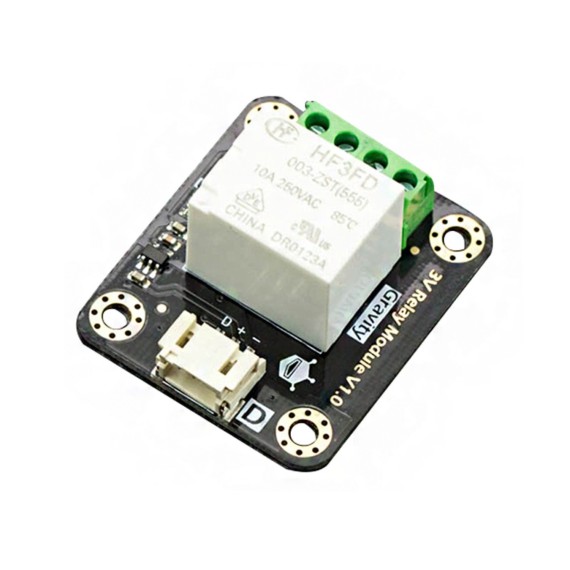

Gravity Digital 10A Relay Module

Κωδικός:

25-00016154

Part Number: DFR0473

ΚατασκευαστήςDFRobot Part NumberDFR0473

Διαθέσιμο

Αποστολή σε 24 ώρες

€4⁸⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

Introducing the Gravity Digital Relay Module – the latest addition to DFRobot’s Gravity series! This module is a little different to the other relays in our store - not only is it compatible with 5V Arduino boards, but also with Raspberry Pi, BBB (BeagleBoard Black), mbed, Intel Joule, Arduino 101 and other 3.3V devices.

It is specially designed for low-voltage devices and works well under 3.3V power supplies, just like the Raspberry Pi relay board. In addition, the module has a wide range of power inputs. In our tests, once it reaches 2.8~5.5V, it can also support 1.8V devices.

DFRobot’s Digital Relay Module uses a high quality 3V relay. It can handle up to 10A current and mechanical parts are guaranteed up to 100 million uses. An on-board indicator LED demonstrates the relay’s state. Terminals include normally open (NO) and normally closed (NC). The module uses a Gravity-3 pin interface, which requires no soldering for convenient plug and play usage.

Operating Voltage: 2.8V ~ 5.5V
Input Signal: High Level (≥2.8V); Low Level (≤0.5V)
Max Switching Current: 10A
Max Switching Voltage: 35VAC; 30VDC
Rating Load: 10A@35VAC; 10A@28VDC
Max Switching Power: 300W
Operate Time: ≤10ms
Release Time: ≤5ms
Dimensions: 38 x 33 x 20 mm /1.5 x 1.3 x 0.81”
Mechanical Life: 1 million uses
Electrical Life: 50 thousand uses
Weight: 20g
