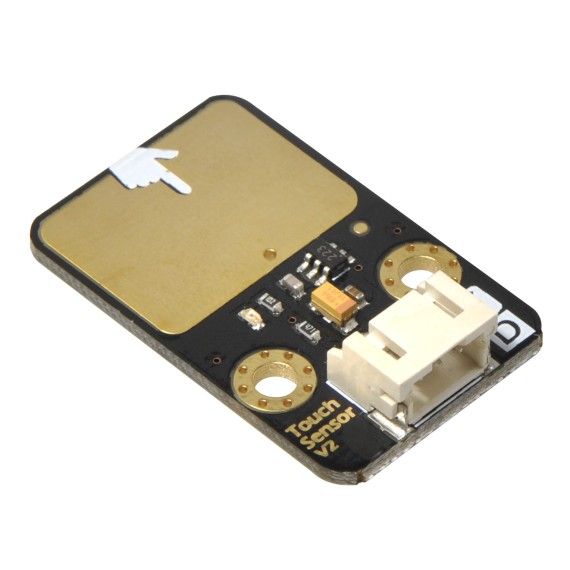

Gravity Digital Capacitive Touch Sensor

από DFROBOT
This arduino digital capacitive touch sensor provides a one-touch style switch on your Arduino project. It uses the most popular capactiive sensing...
25-00016162
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0030
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
4.40
Χωρίς ΦΠΑ 3.55
+

ΠΕΡΙΓΡΑΦΗ

This arduino digital capacitive touch sensor provides a one-touch style switch on your Arduino project. It uses the most popular capactiive sensing technology which is the same as your mobile phone.

Getting tired with clicking mechanic button? Try this capacitive touch sensor. Right now we can find touch sensor on most electronic device. So upgrade your Arduino project with our new version touch sensor and make it cool!!

This little sensor can "feel" people and metal touch and feedback a high/low voltage level. Even isolated by cloth or paper, it still can feel the touch. The sensitivity will decrease as the isolation getting thick. For detail of usage, please check it's wiki.

To ease the difficulty,  a Gravity Interface is adapted to allow plug&play.  The IO expansion shield is the best match toconnect this sensor with your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi, intel edison, joule and curie.

If you want to start playing with sensors, Gravity: 27 Pcs Sensor Kit for Arduino is a great choice for you to learn varieties of sensors.

With this interactive sensor Arduino can feel your touch

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0030
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Αφής
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Διασύνδεση:
  • Ψηφιακή

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Supply Voltage: 3.3V to 5V
  • Interface: Digital
  • Size: 22x30mm



ΔΥΝΑΤΟΤΗΤΕΣ

  • Wide voltage range from 3.3V to 5V
  • Standard assembling structure (two 3mm holes with multiple of 5cm as interval)
  • Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
  • Icons to simplely illustrate sensor function
  • High quality connector
  • Immersion gold surface
  • Specification
