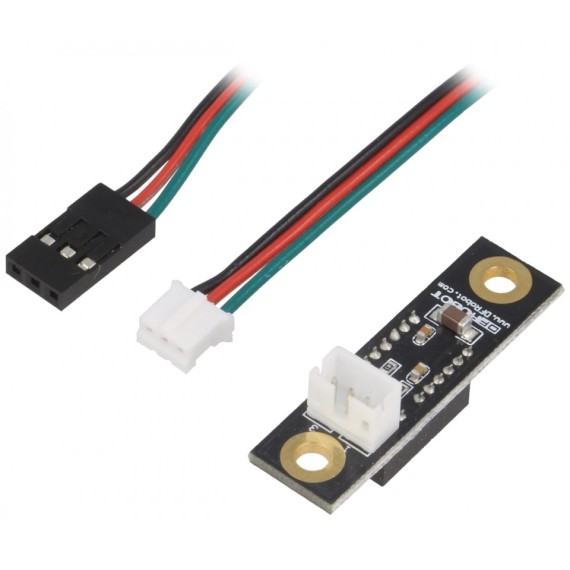

Gravity Digital Infrared Distance Sensor (10cm)

από DFROBOT
This is an edge detection sensor from DFRobot. It will help your robot detect the edge of a precipice, preventing it from falling off a table or down the...
25-00016175
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0042
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
12.20
Χωρίς ΦΠΑ 9.84
+

ΠΕΡΙΓΡΑΦΗ

This is an edge detection sensor from DFRobot. It will help your robot detect the edge of a precipice, preventing it from falling off a table or down the stairs to it's certain demise! This IR distance sensor is connected to an arduino digital pin.

Applications
  • Edge detection sensor
  • Intelligent Mobile Robotics Platforms
  • Home Cleaning Robots

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0042
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Απόστασης
  • Υπερύθρων
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Ρεύμα Λειτουργίας:
10mA
Διασύνδεση:
  • Ψηφιακή

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Supply Voltage: 2.7~6.2v
  • Current: < 10mA
  • Detecting Distance: 2~10cm (Low), <2cm or >10cm (High)
  • Interface:Digital Output
  • Signal Voltage: Vcc-0.6v(High) 0.6v(Low)
  • Size: 36x10x15mm
  • Weight: < 5g
