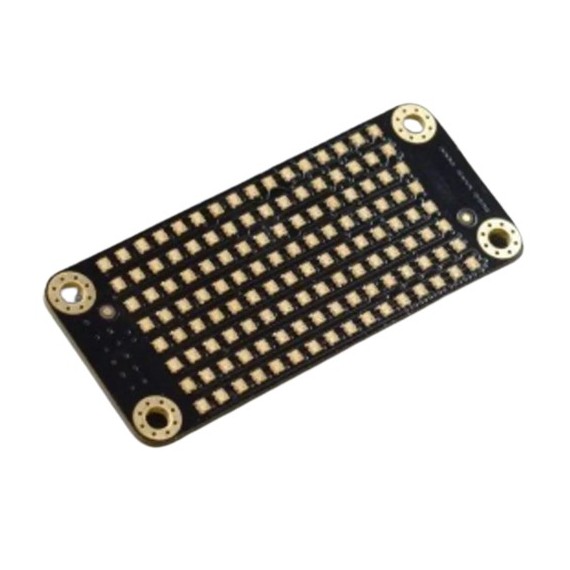

Gravity I2C 8x16 RGB LED Matrix Panel

από DFROBOT
Single color dot matrix LED displays are common in the market while small RGB displays are in short supply. This Gravity: I2C 8x16 RGB LED Matrix Panel...
25-00016264
Ογκομετρικό βάρος: 0.01kg
Χρώμα: RGB
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: DFR0522
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
24.80
Χωρίς ΦΠΑ 20.00
+

ΠΕΡΙΓΡΑΦΗ

Single color dot matrix LED displays are common in the market while small RGB displays are in short supply. This Gravity: I2C 8x16 RGB LED Matrix Panel produced by DFRobot has 7 colors and more than 20 images in default, supporting user-defined image setting.

It can also show Numbers, Letters and Symbols, and support display scroll.

Controlled by I2C agreement, Gravity: I2C 8x16 RGB LED Matrix Panel is easy to connect and convenient to control. Just a special Arduino library can accomplish all designs, which totally free from complex wiring and codes. It can be widely applied to projects like robots, smart home monitoring systems and toy cars…

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1x Gravity: I2C 8x16 RGB LED Matrix Panel
  • 1x Gravity I2C/UART sensor cable

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
DFR0522
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τάση Λειτουργίας:
5VDC
Κατανάλωση Λειτουργίας:
150mA
Διασύνδεση:
  • Digital
Χρώμα:
RGB

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 5.0V
  • Operating Current: ≤150mA
  • Communication: I2C/I2C (PH2.0-4Pin)
  • LED Backlight: RGB Adjustable (7 colors)
  • Operating Temperature: 0-70℃
  • Size: 62x27mm
