Pimoroni 5x5 RGB Matrix Breakout

SKU:

13-00012928

Part Number: PIM435

CompanyPimoroni Part NumberPIM435

In Stock

Ships in 24 Hours

€12⁹⁰ -20%

€10³²

+ −

Ask a question

Availability in Retail Store

Payments & Shipping

Description
Specifications

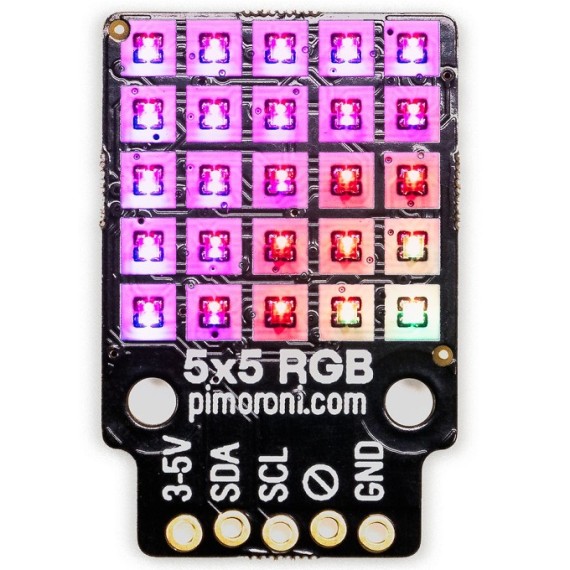

This super-cute 5x5 RGB LED matrix breakout is a neat way to visualise sensor data or for simple animations or notifications, and it's Raspberry Pi and Arduino-compatible.

These little matrices are ideal for visualising data from other Pimoroni breakouts in a Breakout Garden HAT, like graphing environmental data from our BMP280 or BME680 breakouts. Or why not use two together as headlights or brake lights for your Pi-powered vehicle?

Like our other breakouts, this one just pops straight onto your Pi's pins once you've soldered on the included right-angle female header, and we included a trace that can be cut to change the I2C address from 0x74 to 0x77, if you want to use two matrices at once!

It's compatible with our fancy Breakout Garden HAT, where using breakouts is as easy just popping it into one of the six slots and starting to grow your project, create, and code.

5x5 (25 total) RGB LEDs
Uses the IS31FL3731 driver chip
15x15mm active area
3.5mm LED pitch
I2C interface (address 0x74/0x77 (cut trace))
3.3V or 5V compatible
Reverse polarity protection
Compatible with all models of Raspberry Pi, and Arduino
Python library

We've put together a Python library to make it really easy to drive the 5x5 RGB Matrix Breakout, along with a handful of examples to show what it can do.

Our software does not support Raspbian Wheezy.
