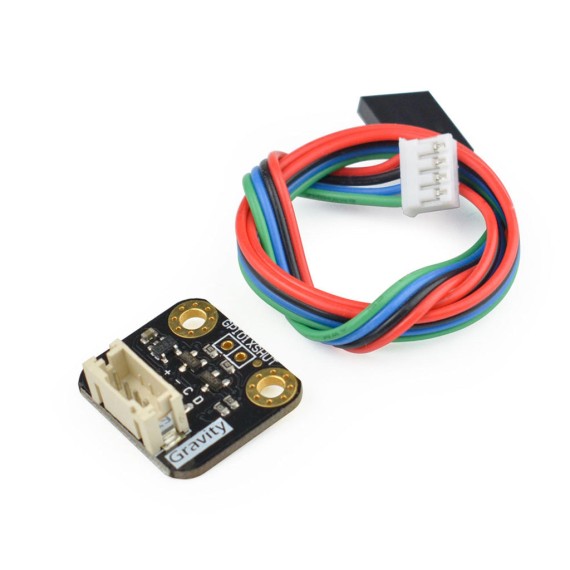

Gravity VL53L0X ToF Distance Sensor (30-2000mm)

από DFROBOT
The VL53L0X laser range finder is a high-precision distance sensor that based on new Time-of-Flight (ToF) principle. VL53L0X provides accurate distance...
25-00016214
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0245
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
16.00
Χωρίς ΦΠΑ 12.90
+

ΠΕΡΙΓΡΑΦΗ

The VL53L0X laser range finder is a high-precision distance sensor that based on new Time-of-Flight (ToF) principle. VL53L0X provides accurate distance measurement whatever the target reflection unlike traditional technology. It can measure absolute distances up to 2m.

DFRobot has introduced VL53L0X into Gravity Series. It provides Gravity-I2C interface, plug and play, supports 3.3V~5V power supply, and is compatible with more microcontrollers, and adapt to more application scenarios than others.

The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second generation FlightSenseTM patented technology. Its accuracy is ±3%, response time is less than 30ms, power consumption is only 20mW in normal operation mode, stand-by power consumption is 5uA.

The VL53L0X's 940nm VCSEL emitter (vertical cavity surface emitting laser) is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distance, higher immunity to ambient light and better robustness to cover-glass optical cross-talk.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0245
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Απόστασης
Τυπική Τάση Εισόδου:
  • 3.3VDC
  • 5VDC
Διασύνδεση:
  • Ψηφιακή
Πρωτόκολλο Eπικοινωνίας:
  • I2C

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power supply: 3.3-5V DC
  • Operating Voltage: 2.8V
  • Infrared emitter: 940nm
  • Range: 30-2000mm
  • FOV: 25°
  • Ranging Accuracy: ±3%
  • Sampling Time: <= 30ms
  • Operating Temperature: -20-70 °C
  • Interface Type: Gravity-I2C
  • Product Size: 20x22mm
