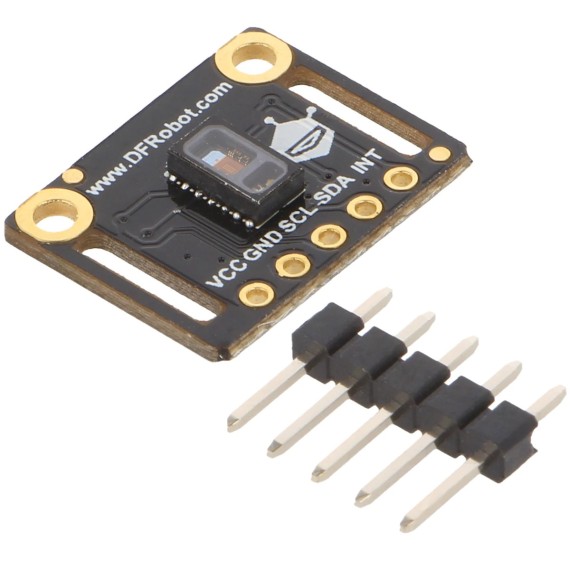

Heart Rate & Oximeter Sensor - MAX30102

by DFROBOT
The MAX30102 is integrated pulse oximetry and heart-rate monitor biosensor module based on PPG (PhotoPlethysmoGraphy). It is so small that you can just...
25-00010103
Company: DFROBOT
Part Number: SEN0344
Made in: China
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
In Stock
Ships in 24 Hours
No stock in retail store
12.90
Without VAT 10.40
+
WISHLIST COMPARE

DESCRIPTION

The MAX30102 is integrated pulse oximetry and heart-rate monitor biosensor module based on PPG (PhotoPlethysmoGraphy). It is so small that you can just wear it on your finger or wrist for data collecting. Internally integrated 18bit ADC, the sensor supports I2C data output, which could be compatible with most controllers.



NOTES

  • Try to fix the sensor on your finger in using to avoid the effect of pressure change on data output.
  • This product is not a professional medical device, and should not be used as an auxiliary accessory in medical diagnosis and treatment.

SPECIFICATIONS

Sensor Type:
  • Biometrics
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
50mA
Interface:
  • Digital
Communication Protocol:
  • I2C

SPECIFICATIONS

  • Power Supply: 3.3 - 5V
  • Working Current (LED off): <5mA
  • RED/IR LED Driving Current: 0-50mA
  • Communication: I2C
  • I2C Address: 0x57
  • Operating Temperature: -40 - 85℃
  • Dimension: 18x14mm

FEATURES

  • Extremely low standby current
  • High sampling rate
  • High SNR
Application
  • Heart-rate Measurement
  • SPO2 Detection
