The body is a black plastic with the LED built inside. There are two contacts for the button and two contacts for the LED, one marked + and one -. The forward voltage of the LED is about 2.2V so connect a 220 to 1000 ohm resistor in series just as you would with any other LED to your 3V or higher power supply.

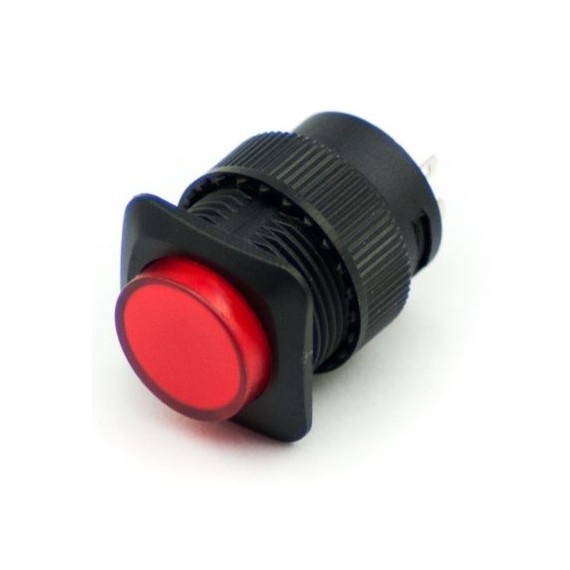

This particular button has a red body and LED and is latching on/off. The two switch contacts are either connected or disconnected. When you push the button they will switch from one to the other, like an on-off switch. The LED is separated from the button, so you can make it light up when on, light up when off, always lit, etc.
- Type of switch: Push-button
- Number of all positions: 2
- Stable positions number: 2-position
- Contacts configuration: SPST-NO
- AC contacts rating @R (at resistance load): 3 A / 250 VAC
- Actuator colour: Red
- Illumination: LED 2.2V DC
- Backlight colour: Red
- Leads for soldering
- Switching method: OFF-ON
- Operating temperature: -25...70°C
- Mounting: On panel
- Button shape: Round, prominent
- Body material: Polyamide
- Flammability rating: UL94HB
- Terminals plating: Silver plated
