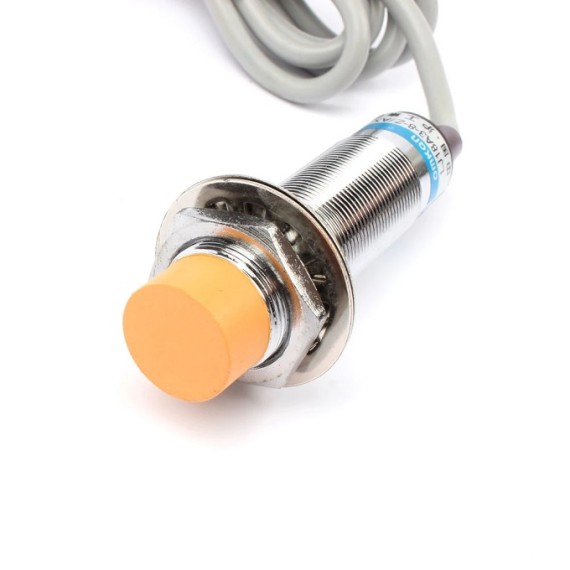

Επαγωγικός Αισθητήρας Απόστασης 18mm - LJ18A3-8-Z/BX

Κωδικός:

19-00018970

Part Number: LJ18A3-8-Z/BX

ΚατασκευαστήςOem Part NumberLJ18A3-8-Z/BX

Διαθέσιμο

Αποστολή σε 24 ώρες

€5⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

100+

Τιμή

€4.72

€4.13

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

Inductive proximity switches, also known as inductive proximity sensors, metal sensors. The switch contains high-frequency oscillation circuit, detection circuit, amplifier circuit, the solution circuit and the output circuit. When the power is supplied to the switch, the oscillator in the high frequency oscillation circuit generates an alternating electromagnetic field on the detection surface of the switch. When there is a metal close to the switch detection surface, the eddy current inside the metal absorbs the energy of the alternating electromagnetic field in the oscillator. The oscillator is weakened or stopped. Oscillator energy changes in the two states, the detection circuit is converted to a level signal, through the amplifier circuit to amplify the level signal after the trigger circuit to trigger the output transistor transistor circuit to produce a switch signal. Thereby detecting the presence or absence of the metal. To achieve the purpose of metal detection.

Model: LJ18A3-8-Z/AX
Type: DC 3 Wire Type (Brown, Blue. Black)
Output Type: NPN NO (Normal Open)
Diameter of Head: 16mm
Thread Diameter: 18mm
Detecting Distance: 8mm
Work Voltage DC: 6-36V
Consumption Current: Max 300mA

Power supply inverted connecting protection, short circuit protection, non-contact detecting device.
When proximity switch is close to some target object, it will send out control signal.
Used widely in the machine tool industry, frequency counters and other automatic control system.
