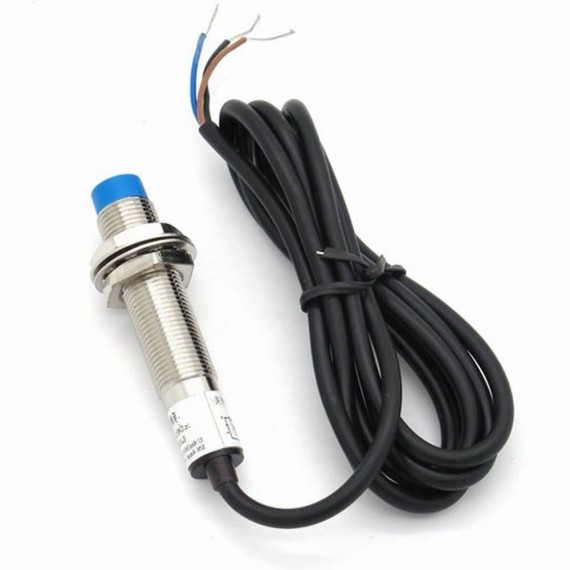

Επαγωγικός Αισθητήρας Απόστασης 8mm - LJ8A3-2-Z/AX

από OEM
Inductive proximity switches, also known as inductive proximity sensors, metal sensors. The switch contains high-frequency oscillation circuit, detection...
39-00013293
Ογκομετρικό βάρος: 0kg
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
4.80
Χωρίς ΦΠΑ 3.87
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 3.84

ΠΕΡΙΓΡΑΦΗ

Inductive proximity switches, also known as inductive proximity sensors, metal sensors. The switch contains high-frequency oscillation circuit, detection circuit, amplifier circuit, the solution circuit and the output circuit. When the power is supplied to the switch, the oscillator in the high frequency oscillation circuit generates an alternating electromagnetic field on the detection surface of the switch. When there is a metal close to the switch detection surface, the eddy current inside the metal absorbs the energy of the alternating electromagnetic field in the oscillator. The oscillator is weakened or stopped. Oscillator energy changes in the two states, the detection circuit is converted to a level signal, through the amplifier circuit to amplify the level signal after the trigger circuit to trigger the output transistor transistor circuit to produce a switch signal. Thereby detecting the presence or absence of the metal. To achieve the purpose of metal detection.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κατασκευαστής
:
OEM
Καθαρό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Model: LJ8A3-2-Z/AX
  • Type: DC 3 Wire Type (Brown, Blue. Black)
  • Output Type: NPN NC(Normal Close)
  • Diameter of Head: 6.5mm
  • Thread Diameter: 8mm
  • Detecting Distance: 2mm
  • Setting distance: 0-1.6 mm
  • Work Voltage DC: 6-36V
  • Work Voltage AC: 90-250V, 50/60Hz
  • Output current:
    • DC type: 300mA max
    • AC Type: 400mA
  • Standard detected object: Mild steel (8x8x1mm)
  • Sensing object: Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
  • Response frequency: 500Hz
  • Matched mounting bracket: M8 mounting bracket
  • Output indication: Red LED
  • Short-circuit protection: No
  • Reverse connection protection: Yes
  • Insulation resistance: 50MΩ min (between charging part and housing)
  • Dielectric strength: 1000Vac, 1min (between charging part and housing)
  • IP Rating: IP65
  • Operating temperature: -25 - 70°C
  • Cable length: 1.2m, PVC cable
  • Material:
    • Case: Brass-nickel plated
    • Sensing surface: ABS
