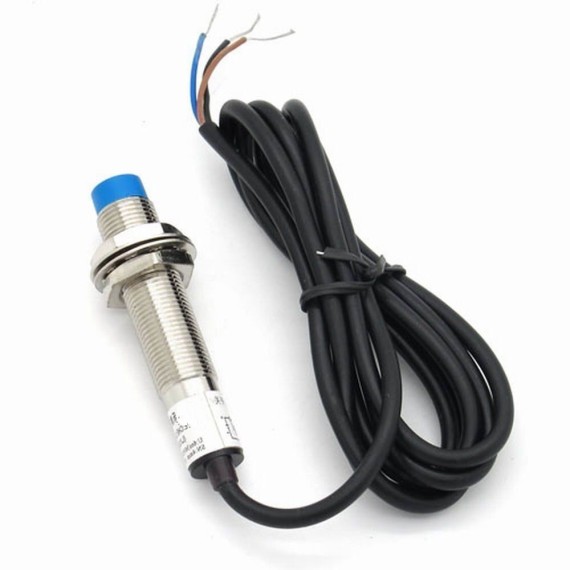

Inductive Proximity Sensor 8mm - LJ8A3-2-Z/BX

by OEM
Inductive proximity switches, also known as inductive proximity sensors, metal sensors. The switch contains high-frequency oscillation circuit, detection...
19-00012485
Company: OEM
Made in: China
Out of Stock
Product out of stock
Low stock in store
3.90
Without VAT 3.15

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

Inductive proximity switches, also known as inductive proximity sensors, metal sensors. The switch contains high-frequency oscillation circuit, detection circuit, amplifier circuit, the solution circuit and the output circuit. When the power is supplied to the switch, the oscillator in the high frequency oscillation circuit generates an alternating electromagnetic field on the detection surface of the switch. When there is a metal close to the switch detection surface, the eddy current inside the metal absorbs the energy of the alternating electromagnetic field in the oscillator. The oscillator is weakened or stopped. Oscillator energy changes in the two states, the detection circuit is converted to a level signal, through the amplifier circuit to amplify the level signal after the trigger circuit to trigger the output transistor transistor circuit to produce a switch signal. Thereby detecting the presence or absence of the metal. To achieve the purpose of metal detection.

SPECIFICATIONS

Sensor Type:
  • Proximity
Typical Input Voltage:
  • 6VDC
Oparating Current:
300mA
Interface:
  • Analog
Communication Protocol:
  • Without

EXTRA SPECIFICATIONS

  • Model: LJ8A3-2-Z/BX
  • Type: DC 3 Wire Type (Brown, Blue. Black)
  • Output Type: NPN NO(Normal Open)
  • Diameter of Head: 6.5mm/ 0.25"
  • Thread Diameter: 8mm/0.31"
  • Detecting Distance: 2mm/ 0.078"
  • Work Voltage DC: 6-36V
  • Consumption Current: Max 300mA

Dimensions

  • 52 x 14mm/ 2" x 0.55"(L*Max.D)
  • Cable Length(Approx.): 105cm/ 41.3"
  • Weight: 24g
