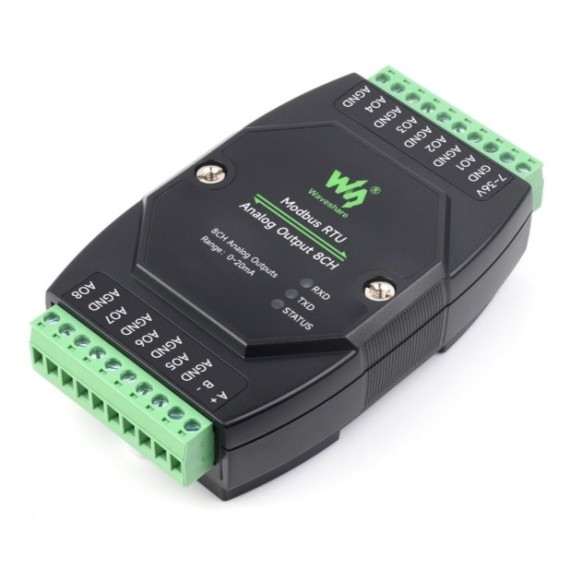

Industrial 8-Ch 12-bit DAC – ModBus RTU Analog Output Current 0-20mA

31-00026419
Modbus RTU Analog Output 8CH
ΚατασκευαστήςWaveshare Part NumberModbus RTU Analog Output 8CH
Διαθέσιμο
Αποστολή σε 24 ώρες
€2860
Waveshare
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

Modbus RTU Analog Output 8CH is an industrial standard analog output module and supports 8-ch simultaneous output. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

Features at a glance
  • Configurable device address (1~255), multi devices can be cascaded on RS485 bus
  • Onboard voltage regulator, supports 7~36V wide range power supply
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
  • Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
  • Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
  • 12-bit DA conversion, using high-precision resistors for more accurate output data
  • Onboard watchdog, for stable output without crashing
  • Rail-mount case design, support stacking combination, easy to install and safer to use
  • 3x LEDs for indicating the MCU status and signal transceiving status


Version options
Technical data - Comparison table
GRobotronics SKU31-0002641931-00026211
ProductIndustrial 8-Ch 12-bit DAC – ModBus RTU Analog Output Current 0-20mAIndustrial 8-Ch 12-bit DAC – ModBus RTU Analog Output (B) Voltage 0-10V
Communication interfaceRS485
Baud rate4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default communication format9600, N, 8, 1
Modbus protocolStandard Modbus RTU protocol
Power supplyDC 7~36V
Output8-ch current output8-ch voltage output
Resolution12-bit, 1μA12-bit, 1mV
Range0~20mA0~10V
Output accuracy±0.03mA±0.01V





Package contents
  1. Modbus RTU Analog Output 8CH ×1
  2. Power supply terminal adapter ×1
  3. Screwdriver ×1


Κατασκευαστής
Waveshare
Part Number
Modbus RTU Analog Output 8CH
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.001kg
