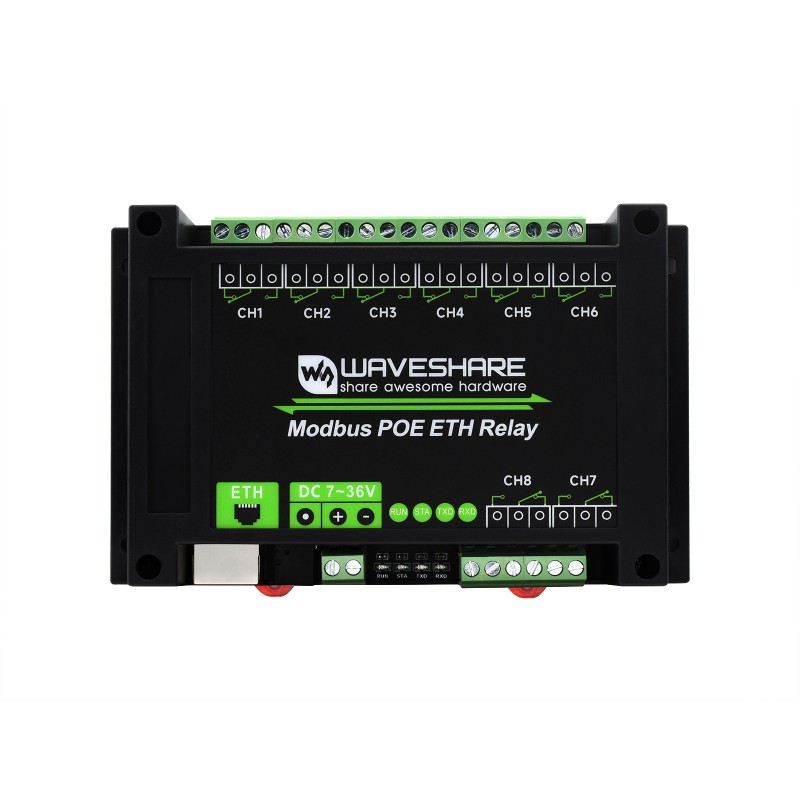

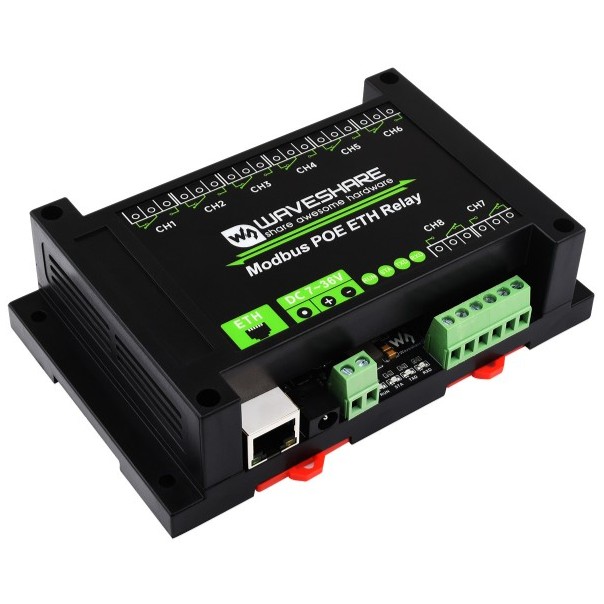

Industrial Modbus RTU/TCP 8-Ch Relay Module – Ethernet

Κωδικός:

31-00024964

Part Number: Modbus POE ETH Relay

MountRail-mount PoE ΔιασύνδεσηEthernet to 8-Ch Relay ΚατασκευαστήςWaveshare Part NumberModbus POE ETH Relay

Διαθέσιμο

Αποστολή σε 24 ώρες

€49⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€44.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά
Βίντεο

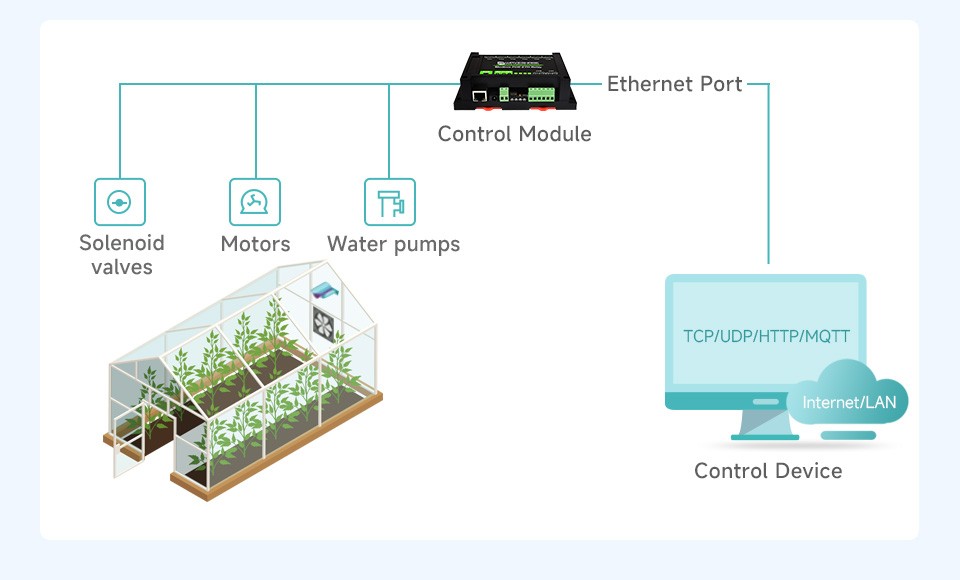

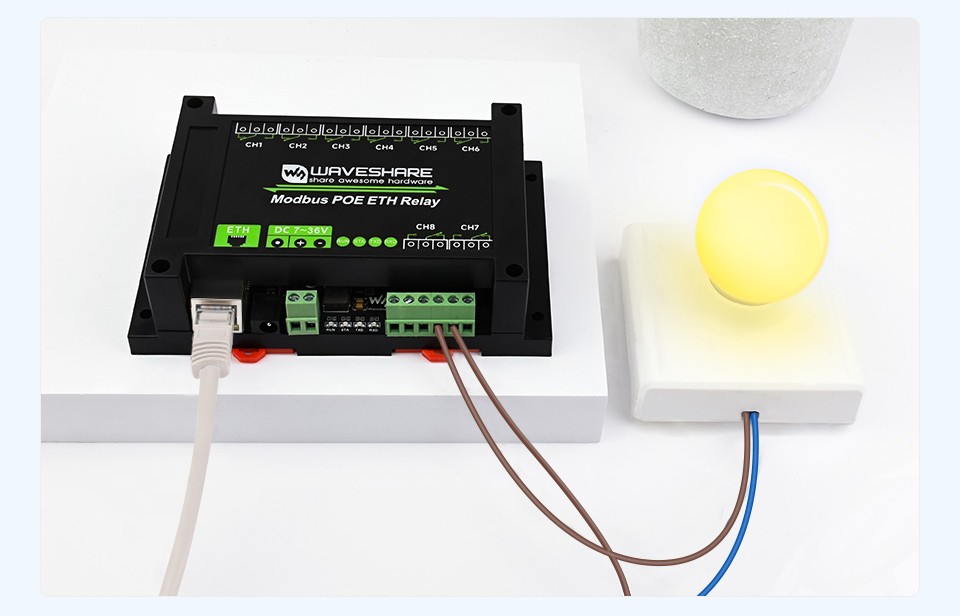

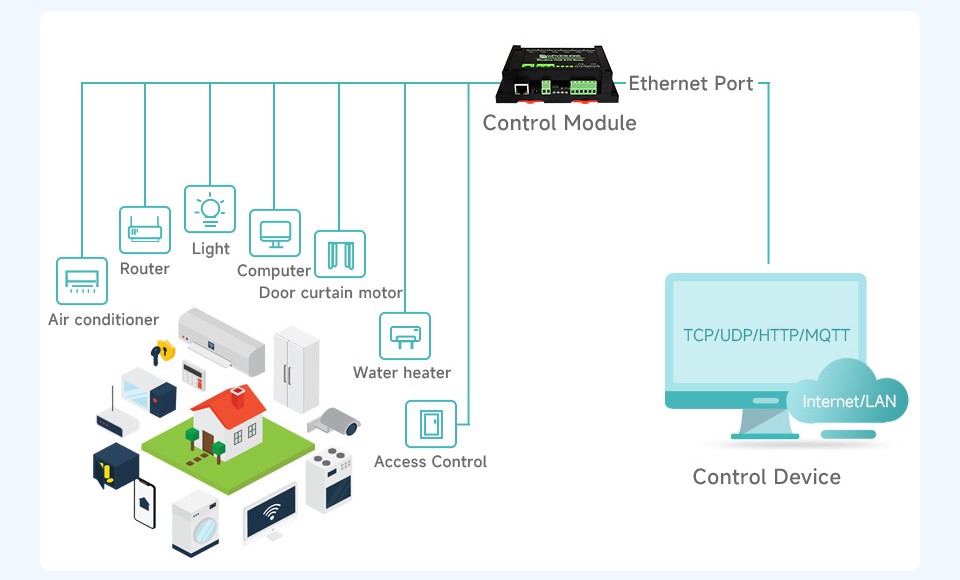

This product is an industrial 8-ch relay module controlled via Ethernet port, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case. The Modbus POE ETH Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

Features

Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
Supports DC 7V–36V wide range power input and PoE power supply
Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection

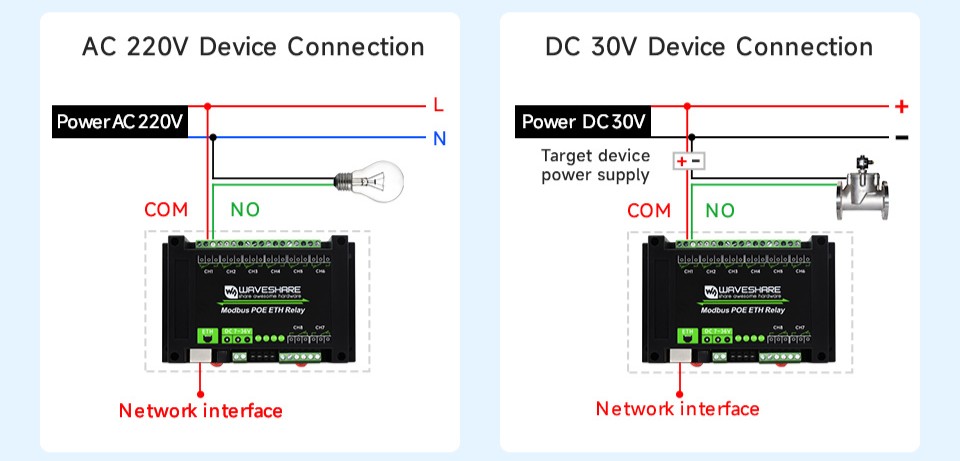

High-quality relay, contact rating: ≤10A 250VAC/30VDC

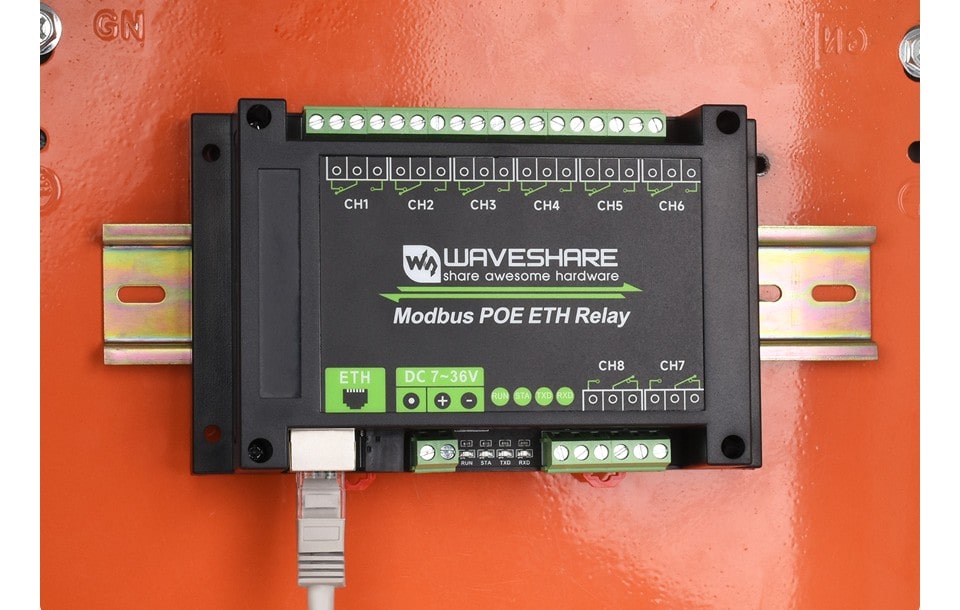

Rail-mounted ABS case, easy to install, safe to use
4 LEDs and Network indicators for indicating the MCU status and signal transceiving status

Technical data

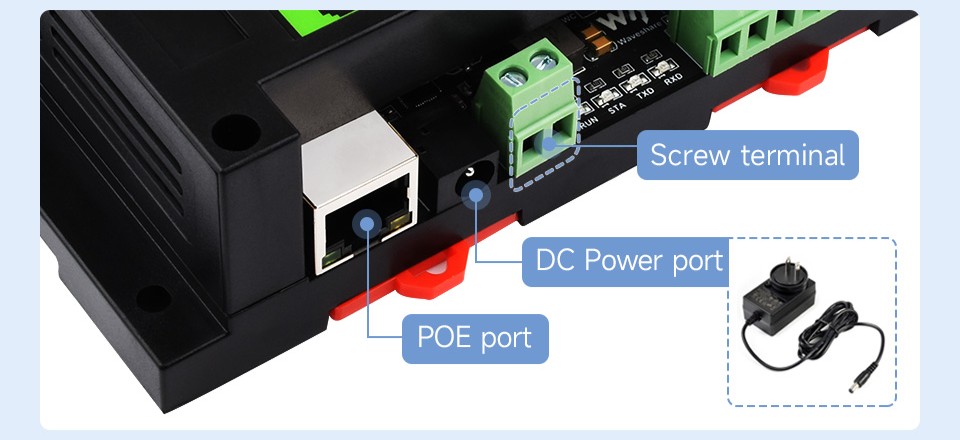

Power supply	PoE port, DC 5.5×2.1 power port, or screw terminal (7V–36V)
Communication interface	PoE port, IEEE 802.3af compliant
Relay channels	8
Contact form	1NO 1NC

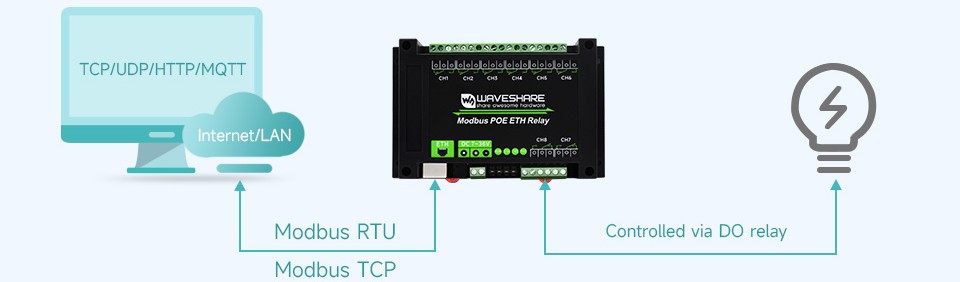

Modbus protocol	Modbus RTU Protocol or Modbus TCP Protocol
Contact rating	≤10A 250VAC/30VDC

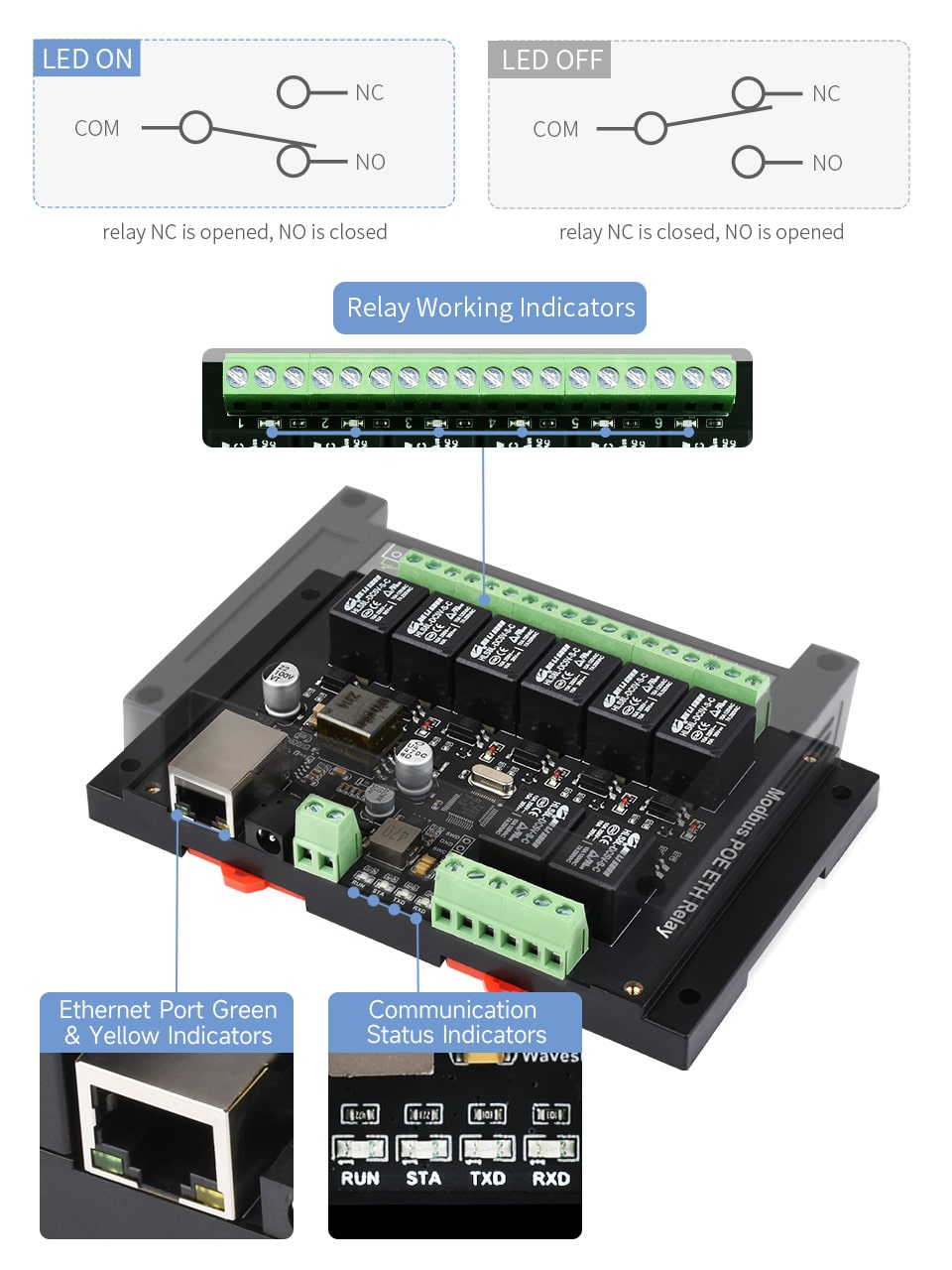

LED indicators	RUN: Ethernet port indicator, blinking in 2-second cycles when Ethernet port normally working STA: MCU indicator, blinking when the MCU normally working TXD: TX indicator, lights up when sending data RXD: RX indicator, lights up when receiving data

Package contents

Modbus POE ETH Relay ×1

Note

This product supports PoE for power supply and the external power supply adapter is not included by default, it is recommended to purchase 12V power supply (GRobotronics SKU: 31-00030622SKU copied!) if you need it.

Waveshare Industrial Modbus RTU & TCP Relay Modules - Comparison table

Model	GRobotronics SKU	Communication parameters	Relay type	Output control	Input control	Power range	Dimensions
Industrial Modbus RTU 8-Ch Relay Module – RS485	31-00017658SKU copied!	RS485 port	10A Universal Relay	8-ch	–	5V	145×90×40mm
Industrial Modbus RTU 8-Ch Relay Module (B) – RS485	31-00025739SKU copied!	RS485 port	10A Universal Relay	8-ch	–	7V–36V	175×90×40mm
Industrial Modbus RTU 8-Ch Relay Module (C) – RS485	31-00030460SKU copied!	RS485 port	10A Latching Relay	8-ch	–	7V–36V	145×90×40mm
Industrial Modbus RTU 8-Ch Relay Module (D) – RS485 & Digital Input	31-00026517SKU copied!	RS485 port	10A Universal Relay	8-ch	8-ch	7V–36V	175×90×40mm
Industrial Modbus RTU 8-Ch Relay Module (E) – RS485	31-00030459SKU copied!	RS485 port	30A High Current Relay	8-ch	–	7V–36V	200×110×60mm
Industrial Modbus RTU 4-Ch Relay Module – RS485	31-00030461SKU copied!	RS485 port	30A High Current Relay	4-ch	–	7V–36V	145×90×40mm
Industrial Modbus RTU 16-Ch Relay Module – RS485	31-00024921SKU copied!	RS485 port	10A Universal Relay	16-ch	–	5V	200×110×60mm
Industrial Modbus RTU/TCP 8-Ch Relay Module – Ethernet	31-00024964SKU copied!	Ethernet port (PoE support)	10A Universal Relay	8-ch	–	7V–36V	145×90×40mm
Industrial Modbus RTU/TCP 8-Ch Relay Module (B) – Ethernet & Digital Input	31-00027876SKU copied!	Ethernet port (PoE support)	10A Universal Relay	8-ch	8-ch	7V–36V	175×90×40mm
Industrial Modbus RTU/TCP 8-Ch Relay Module (C) – Dual Ethernet & Digital Input	31-00030544SKU copied!	Dual Ethernet ports (PoE support)	10A Universal Relay	8-ch	8-ch	7V–36V	175×90×40mm
