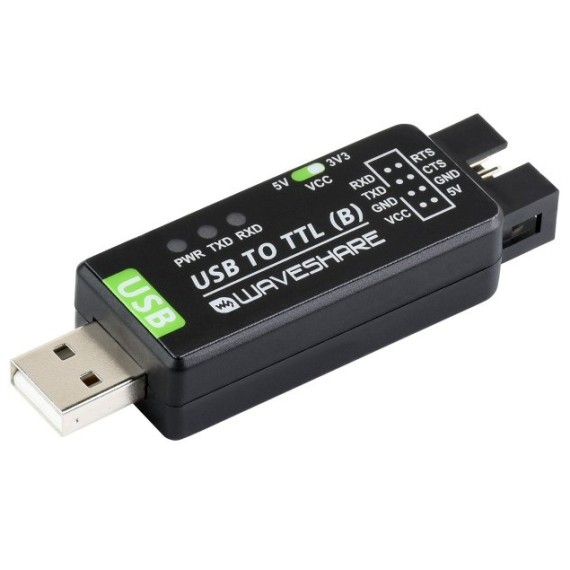

Industrial USB to TTL Converter CH343G

Κωδικός:

31-00021550

Part Number: 21550

ΚατασκευαστήςWaveshare Part Number21550

Διαθέσιμο

Αποστολή σε 24 ώρες

€7⁶⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€6.84

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

Industrial USB TO TTL Converter, Original CH343G Onboard, Multi Protection Circuits, Multi Systems Support

Multiple Protection, Safe And Stable

Onboard Resettable Fuse And TVS Diode, Providing Protections Including Over-Current, Over-Voltage, Backward-Proof, And ESD Protection, Improving Shock Resistance, Safe And Stable Communications

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

USB TO TTL (B) x1
8PIN fool-proof wire x1

ΣΗΜΕΙΩΣΕΙΣ

USB cable is not included
This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

Three LED Indicators

Easily Checking The Operating Status, Convenient For Programming / Debugging

USB Signal & Pinouts Definition

5V	5V output
VCC	3.3V or 5V output, configured by switch
GND	Ground
TXD	Connecting to MCU.RX
RXD	Connecting to MCU.TX
RTS	Connecting to MCU.CTS
CTS	Connecting to MCU.RTS

Product Category: Industrial USB TO TTL converter
Host Port: USB
Data Rate: 50bps ~ 6Mbps
Device Port: UART
USB Port:
- Connector: USB-A
- Protection: Resettable fuse, ESD protection
UART Port:
- Connector: 8PIN fool-proof header
- Protection: IO protection diode
Indicator:
- PWR: Power indicator, turns red when USB voltage is detected
- TXD: TX indicator, turns red while the USB port is sending data
- RXD: RX indicator, turns red while the device port is receiving data

Outline Dimensions

Selection guide

Product	USB TO TTL (Industrial USB to TTL Converter FT232)	USB TO TTL (B) (Industrial USB to TTL Converter CH343G)	USB TO TTL (C) (Industrial USB to TTL Serial Cable - 6Pin)	USB TO TTL (D) (Industrial USB to TTL Serial Cable - PPi 5 Debugging Port)
GRobotronics SKU	31-00017939	31-00021550	31-00026739	31-00026738
Product Category	Industrial USB TO TTL converter		Industrial USB TO TTL serial cable
Chip	FT232	CH343G	FT232
Data rate	300bps ~ 3Mbps	50bps ~ 6Mbps	300bps ~ 3Mbps
Hardware flow	Supported			Not supported
OS support	Win7/8/8.1/10/11, Mac, Linux, Android
USB port	Connector: USB-A Protection: resettable fuse, ESD protection
UART port	Connector: 8PIN fool-proof header Protection: IO protection diode		Connector: separated 6pin female header Protection: IO protection diode	Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector Protection: IO protection diode
Indicators	PWR: power indicator, turns on when there is USB connection and voltage is detected TXD: TX indicator, turns on while the USB port is sending data RXD: RX indicator, turns on while the device port is sending data back
