Industrial USB to RS232/RS485/TTL Converter

31-00015817
USB TO RS232/485/TTL
ΚατασκευαστήςWaveshare Part NumberUSB TO RS232/485/TTL
Διαθέσιμο
Αποστολή σε 24 ώρες
2990
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
26.91
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

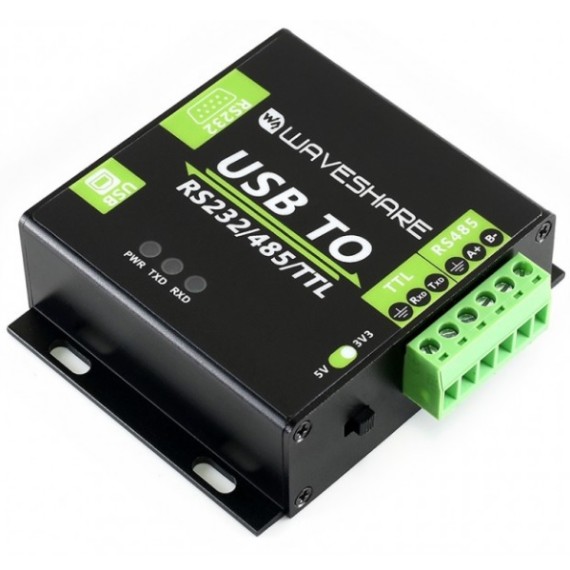

This is an industrial USB to RS232/485/TTL isolated converter with original FT232RL inside. It features embedded protection circuits such as power isolation, ADI magnetical isolation, and TVS diode, etc. What's more, the USB TO RS232/485/TTL comes with an aluminium alloy enclosure, make it solid and durable to work. The USB TO RS232/485/TTL is very easy to use, fully automatic transceiving without delay. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

Features
  • USB TO RS232, USB TO RS485, USB TO TTL (UART)
  • Adopt original FT232RL, fast communicating, stable and reliable, better compatibility
  • Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

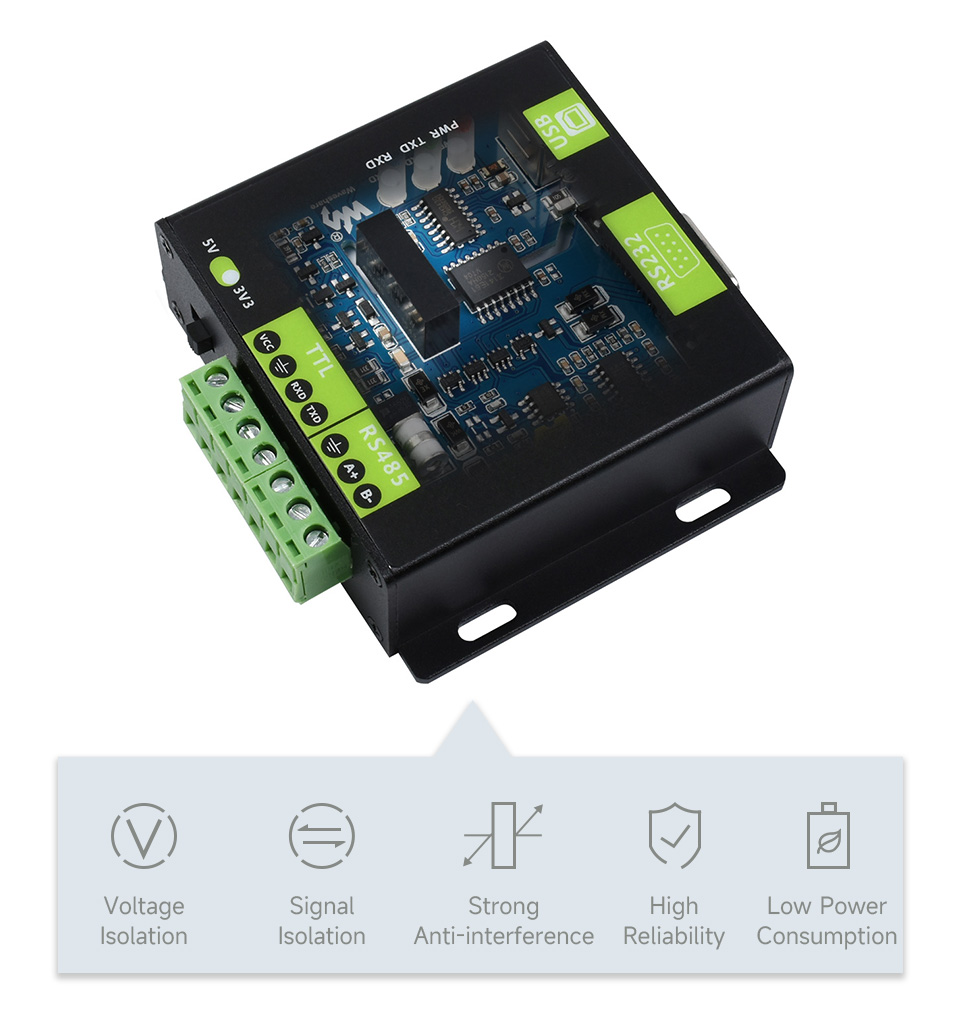

  • Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

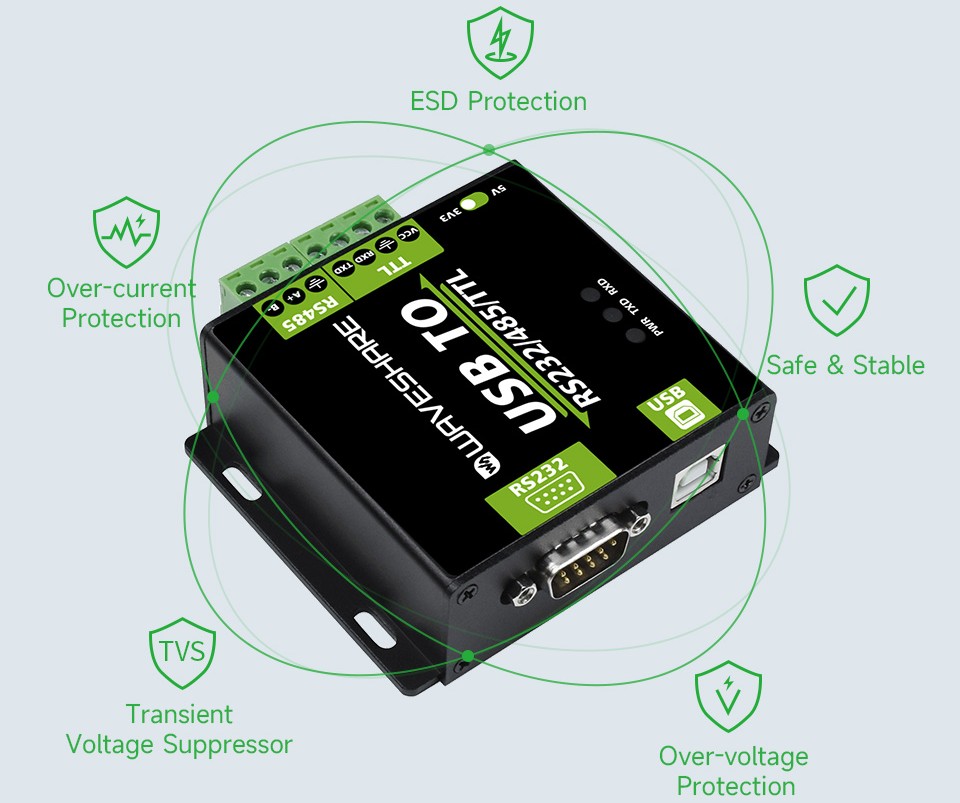

  • Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic
  • Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering each other

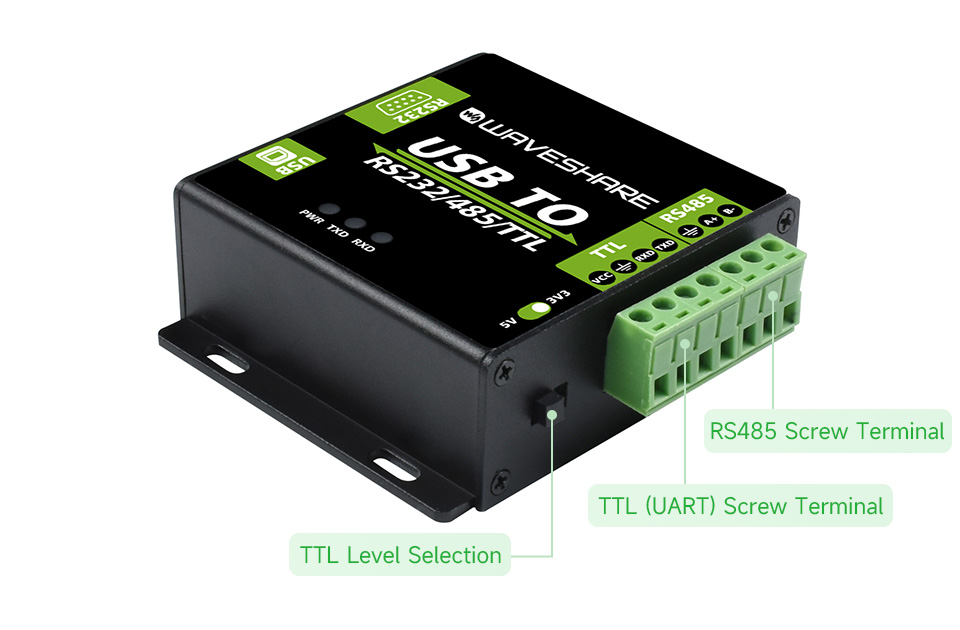

  • Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
  • Aluminium alloy enclosure with sand blasting and anodic oxidation, CNC process opening, solid and durable

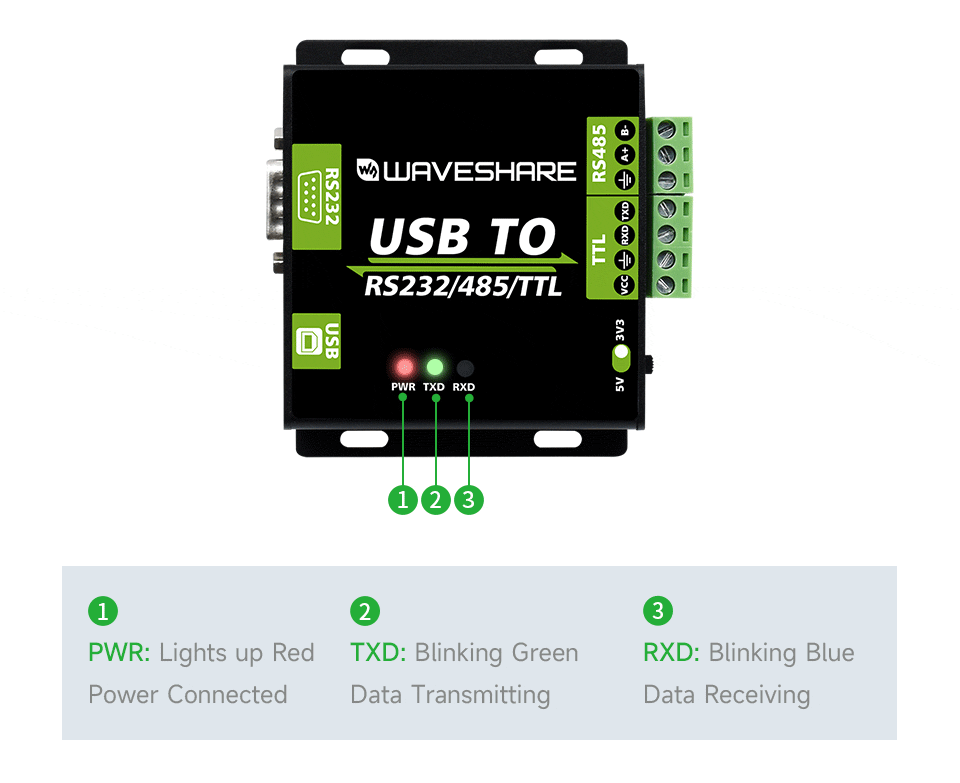

  • 3 LEDs for indicating the power and transceiver status

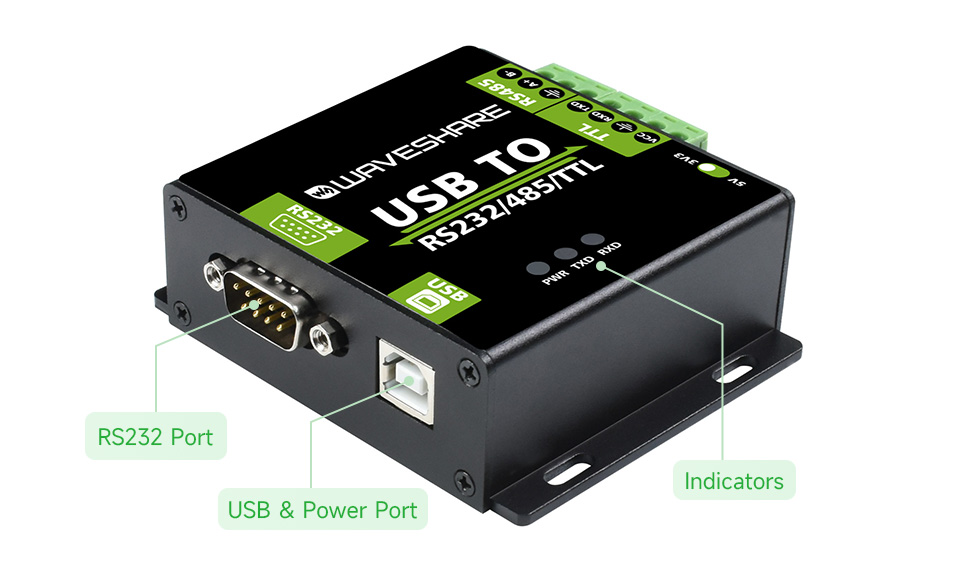

  • High quality USB-B and RS232 connectors, smoothly plug/pull


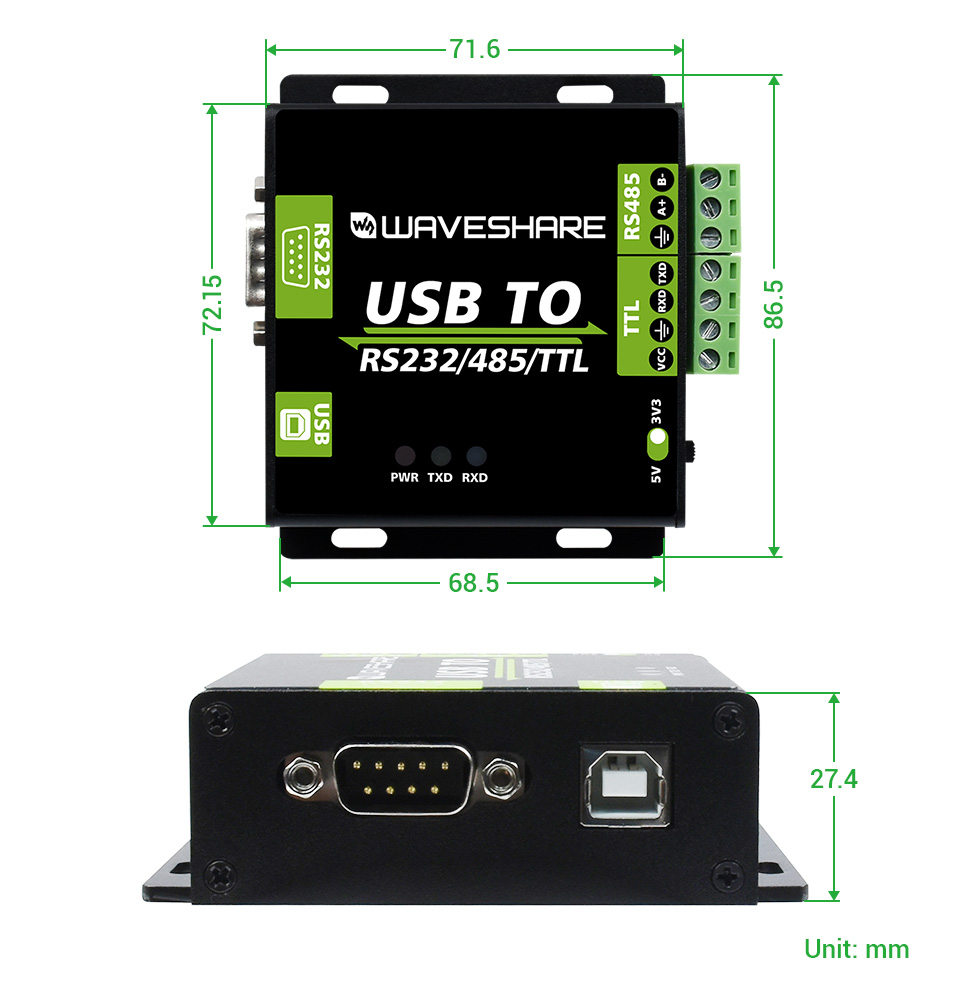

Technical data
Product typeIndustrial grade digital isolated converter
USBOperating voltage5V
ConnectorUSB-B
Protection200mA self-recovery fuse, isolated output
RS232ConnectorDB9 male
ProtectionTVS diode, surge protection & ESD protection
Transmission modePoint-to-point
Baud rateFT232RL: 300bps–921600 bps
CH343G: up to 600000 bps (not full band)
RS485ConnectorScrew terminal
PinsA+/B-/GND
Direction controlHardware automatically discriminates and controls the direction of data transmission
Protection600W lightningproof and surge-suppress, 15KV ESD protection (reserved 120R balancing resistor solder pads
Transmission modePoint-to-multipoints (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
Baud rateFT232RL: 300bps–2Mbps
CH343G: up to 2 Mbps (not full band)
TTL (UART)Operating voltage3.3V/5V
ConnectorScrew terminal
PinsTXD, RXD, GND, 5V
Protectionclamp protection diode, over-voltage/negative-voltage proof, shock proof
Transmission modePoint-to-point
Baud rateFT232RL: 300 bps–2 Mbps
CH343G: up to 2 Mbps (not full band)
IndicatorsPWRRed power indicator, light up when there is USB connection and voltage is detected
TXDGreen TX indicator, light up when the USB port sends data
RXDBlue RX indicator, light up when the device ports send data back
Operating environmentTemperature-15℃–70℃
Humidity5%RH–95%RH
Operating systemMac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7
Waveshare Industrial USB to serial port converters - Comparison table
ModelGRobotronics SKUDescriptionSerial port converterIsolation
Industrial USB to RS232/RS485/TTL Converter31-00015817SKU copied!USB to single-channel serial port
Adopts FT232RL solution
Wall-mount and desktop support
USB to RS232
USB to RS485
USB to TTL
Yes
Industrial USB to RS232/RS485/RS422/TTL Converter31-00023996SKU copied!USB to single-channel serial port
Adopts FT232RNL solution
Wall-mount and rail-mount support
USB to RS232
USB to RS485
USB to RS422
USB to TTL
Yes
Industrial USB to 2-Ch UART/I2C/SPI/JTAG Converter31-00025411SKU copied!USB to 2-ch serial port
Adopts CH347T solution
Wall-mount and desktop support
USB to 2-ch TTL
USB to 1-ch TTL & 1-ch I2C & 1-ch SPI
USB to 1-ch TTL & 1-ch JTAG
No
Industrial USB to 4-Ch RS485 Converter31-00025219SKU copied!USB to 4-ch serial port
Adopts CH344 solution
Wall-mount and desktop support
USB to 4-ch RS485No
Industrial USB to 4-Ch RS485 Converter (B)31-00026545SKU copied!USB to 4-ch serial port
Adopts CH344 solution
Wall-mount and desktop support
USB to 4-ch RS485Yes
Industrial USB to 4-Ch RS232/RS485 Converter31-00026681SKU copied!USB to 4-ch serial port
Adopts FT4232HL solution
Wall-mount and rail-mount support
USB to 4-ch RS232
USB to 3-ch RS232 & 1-ch RS485
USB to 2-ch RS232 & 2-ch RS485
Yes
Industrial USB to 4-Ch RS232/RS485/RS422/TTL Converter31-00025790SKU copied!USB to 4-ch serial port
Adopts FT4232HL solution
Wall-mount and desktop support
USB to 1-ch TTL & 3-ch RS485
USB to 1-ch TTL & 2-ch RS485 & 1-ch RS232
USB to 1-ch TTL & 2-ch RS485 & 1-ch RS422
USB to 1-ch TTL & 1-ch RS485 & 1-ch RS232 & 1-ch RS422
USB to 2-ch TTL & 2-ch RS485
USB to 2-ch TTL & 1-ch RS485 & 1-ch RS422
USB to 2-ch TTL & 1-ch RS422 & 1-ch RS232
Yes
Industrial USB to 8-Ch TTL Converter31-00027076SKU copied!USB to 8-ch serial port
Adopts CH348L solution
Wall-mount and desktop support
USB to 8-ch TTLNo
Industrial USB to 8-Ch RS485 Converter31-00028214SKU copied!USB to 8-ch serial port
Wall-mount and rail-mount support
USB to 8-ch RS485Yes




Package contents
  1. USB TO RS232/485/TTL Converter ×1
  2. USB Cable ~1.2m ×1
12

ΒΙΝΤΕΟ

Waveshare USB TO RS232/485/TTL Interface Converter with Industrial Isolation

Κατασκευαστής
Waveshare
Part Number
USB TO RS232/485/TTL
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.181kg
