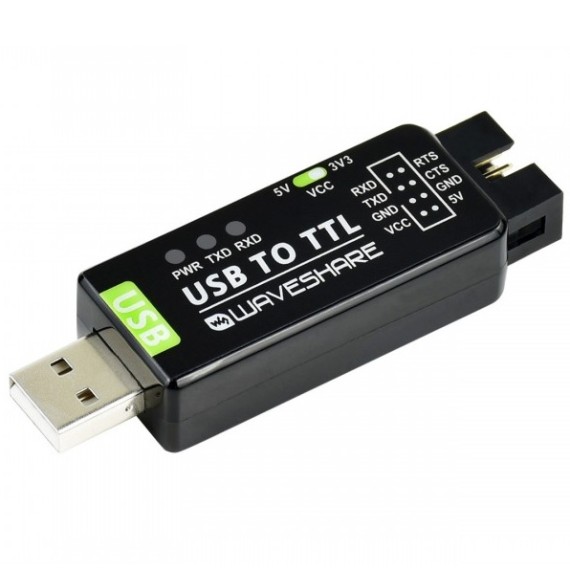

Industrial USB to TTL Converter FT232

31-00017939
ΚατασκευαστήςWaveshare
Διαθέσιμο
Αποστολή σε 24 ώρες
€1000
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€9.00
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

Industrial USB TO TTL Converter, Original FT232RL Onboard, Multi Protection Circuits, Multi Systems Support

Original Chip Onboard

Adopts Original FT232RL Converter, Providing Better Stability And Compatibility, Enabling Industrial Grade High Performance Communication Between Computer And TTL Devices



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  1. USB TO TTL x1
  2. 8PIN fool-proof wire x1
12

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10, Mac, Linux, Android, WinCE...

Three LED Indicators

Easily Checking The Operating Status, Convenient For Programming / Debugging

USB Signal & Pinouts Definition

5V 5V output
VCC 3.3V or 5V output, configured by switch
GND Ground
TXD Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
RXD Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX)
RTS Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
CTS Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS)


ΣΗΜΕΙΩΣΕΙΣ

  • USB cable is not included
  • This converter is designed to work on TTL level, NEVER connect it to RS232 level to avoid damage
  • Product Category: Industrial USB TO TTL converter
  • Host Port: USB
  • Data Rate: 300bps ~ 3Mbps
  • Device Port: UART
  • USB Port:
    • Connector: USB-A
    • Protection: Resettable fuse, ESD protection
  • UART Port:
    • Connector: 8PIN fool-proof header
    • Protection: IO protection diode
  • Indicator:
    • PWR: Power indicator, turns red when USB voltage is detected
    • TXD: TX indicator, turns red while the USB port is sending data
    • RXD: RX indicator, turns red while the device port is receiving data

Outline Dimensions

Selection guide
ProductUSB TO TTL
(Industrial USB to TTL Converter FT232)		USB TO TTL (B)
(Industrial USB to TTL Converter CH343G)
USB TO TTL (C)
(Industrial USB to TTL Serial Cable - 6Pin)		USB TO TTL (D)
(Industrial USB to TTL Serial Cable - PPi 5 Debugging Port)
GRobotronics SKU31-0001793931-0002155031-00026739
31-00026738
Product CategoryIndustrial USB TO TTL converterIndustrial USB TO TTL serial cable
ChipFT232CH343GFT232
Data rate300bps ~ 3Mbps50bps ~ 6Mbps300bps ~ 3Mbps
Hardware flowSupportedNot supported
OS supportWin7/8/8.1/10/11, Mac, Linux, Android
USB portConnector: USB-A
Protection: resettable fuse, ESD protection
UART portConnector: 8PIN fool-proof header
Protection: IO protection diode		Connector: separated 6pin female header
Protection: IO protection diode		Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector
Protection: IO protection diode
IndicatorsPWR: power indicator, turns on when there is USB connection and voltage is detected
TXD: TX indicator, turns on while the USB port is sending data
RXD: RX indicator, turns on while the device port is sending data back

Κατασκευαστής
Waveshare
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.032kg
