Keypad 4x5 Matrix Thin

από OEM

Punch in your secret key into this numeric matrix keypad. This keypad has 20 buttons, arranged in a telephone-line 4x5 grid.

19-00019847
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
1.60
Χωρίς ΦΠΑ 1.29
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 1.28 1.12

ΠΕΡΙΓΡΑΦΗ

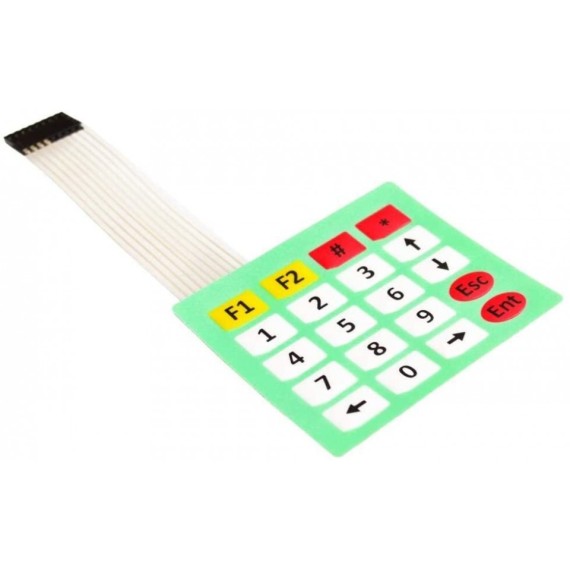

Punch in your secret key into this numeric matrix keypad. This keypad has 20 buttons, arranged in a telephone-line 4x5 grid. It's made of a thin, flexible membrane material with an adhesive backing (just remove the paper) so you can attach it to nearly anything. The keys are connected into a matrix, so you only need 9 microcontroller pins (4-columns and 5-rows) to scan through the pad. Check the tutorials tab for links to an Arduino library and example code.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Είδος Περιφερειακού:
  • Πληκτρολόγια & Joystick
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.008kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Working voltage: 3.3-5V
  • Connector: 9 pins female header, 2.54mm Pitch
  • Insulation Resistance: 100M 100V
  • Withstand Voltage: 250V Rms.(50-60Hz lmin)
  • Panel Size: 75x85mm
  • Length: 180mm
  • Weight: 9.5 grams
