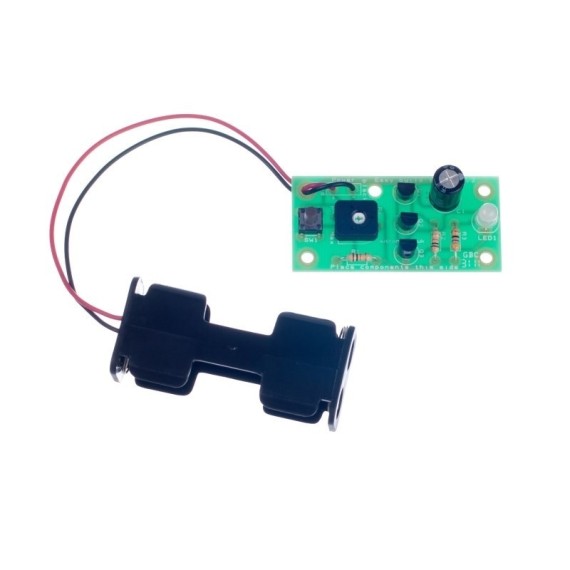

Kitronik Easy Build Timer Project Kit

83-00002111
KITRONIK-2111
ΚατασκευαστήςKitronik Part NumberKITRONIK-2111
Διαθέσιμο
Αποστολή σε 24 ώρες
€380
Kitronik
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

The Easy Build Timer Kit can be set to time periods of up to 4 minutes. To begin the timer, press the button. As the LED turns from green to red, the time is up

With its low part count this easy build timer project makes a good introduction to electronics. The timer uses a resistor capacitor network to provide a time delay of between 1 second and 4 minutes, which is set by the PCB mount variable resistor. When the button is pressed the LED changes from red to green, then at the end of the time interval it turns red.

Note:

  • This kit requires soldering

Features:

  • Easy build timer kit
  • When the time set has been reached the LED changes colour
  • The time delay can be adjusted via the variable resistor

Contents:

  • 1 x 2xAA Battery Cage
  • 1 x 47Ω Resistor
  • 2 x 10KΩ Resistors
  • 1 x 1MΩ Potentiometer
  • 1 x Capacitor, Electrolytic, 10V, 1 mF
  • 1 x BC558 PNP Transistor
  • 1 x Tri colour 5mm diffused LED - 650mCd
  • 1 x 6mm PCB Mount Tactile Switch 9.5mm Height
  • 1 x Easy Build Timer PCB

Dimensions:

  • PCB Length: 54mm.
  • PCB Width: 26mm.

Requires:

Resources:



Κατασκευαστής
Kitronik
Part Number
KITRONIK-2111
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.001kg
