Kitronik Steady Hand Game Project Kit (with Latch)

83-00002108
KITRONIK-2108-01
ΚατασκευαστήςKitronik Part NumberKITRONIK-2108-01
Διαθέσιμο
Αποστολή σε 24 ώρες
€680
Kitronik
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This Steady Hand Kit sounds a buzzer as the loop and wire come into contact, an LED is also latched on until the reset button is pressed.

This steady hand game has a buzzer that sounds momentarily when the loop makes contact with the wire.

It also has an LED, which latches on when the buzzer sounds via the use of a thyristor. It then remains on so that even the briefest contact of the loop with the wire can be indicated. A push button is used to reset the LED.

Features:

  • Buzzer sounds when loop makes contact with wire.
  • LED latched until reset button is pressed.
  • Bright LED to notify user.
  • Loud buzzer sound.

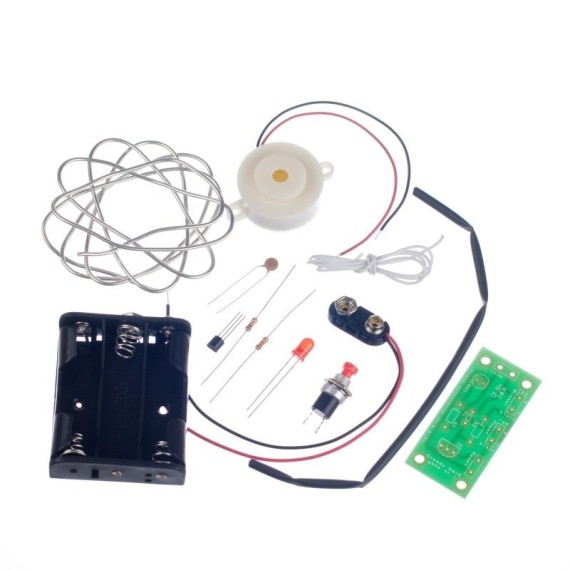

Contents (per kit):

  • 1 x PP3 Battery Clip Lead (Heavy Duty)
  • 1 x 3xAA Battery Cage with Clip
  • 1 x 1m Extra Flexible Wire, Black
  • 1 x 1m Solid Core Cable
  • 1 x Piezo Buzzer (with Drive)
  • 1 x 220R Resistor
  • 1 x 10K Resistor
  • 1 x Capacitor, Ceramic, 50V, 10nF
  • 1 x 2N5061 Thyristor
  • 1 x Red 5mm Diffused LED - 275mCd
  • 1 x Miniature Push to Make Switch, Red
  • 1 x 20cm length Black Heat Shrink, 2.4mm
  • 1 x Steady Hand PCB

Dimensions: 52mm x 25mm

Requires:

Resources:

Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
Kitronik
Καθ. Βάρος
0.001kg
