LED Tactile Button - White

Κωδικός:

29-00010439

Part Number: TSL-012-WHITE

ΚατασκευαστήςOem Part NumberTSL-012-WHITE

Διαθέσιμο

Αποστολή σε 24 ώρες

€0⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

100+

1000+

Τιμή

€0.72

€0.54

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

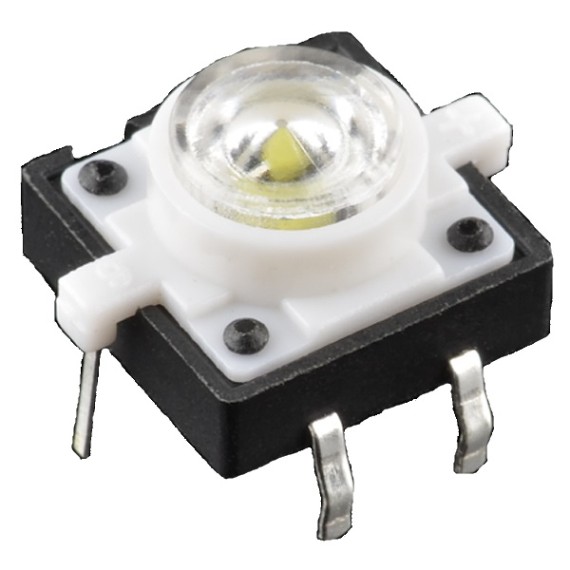

This is a simple LED-illuminated tactile button with a clear white cap. It’s just like a basic tactile button, but it lights up white! So now you can get visual feedback, or light up your project. These have a 12mm body and are rated for 50mA. They don’t easily fit into a breadboard, but check below for a breakout board. We also have these in a a variety of colors, check below to see the others.

LED voltage: 2-3V
LED color: White
Travel: 0.25mm
Operating Direction: Top Push
Operating Life: Over 100,000 cycles
Operating Temperature: -25℃~+105℃
Rating (max.): 50mA 12V
DC Rating (min.): 10µA 1V DC
Initial contact resistance: 100mΩ max.
Operating force: 180/250±30gf
