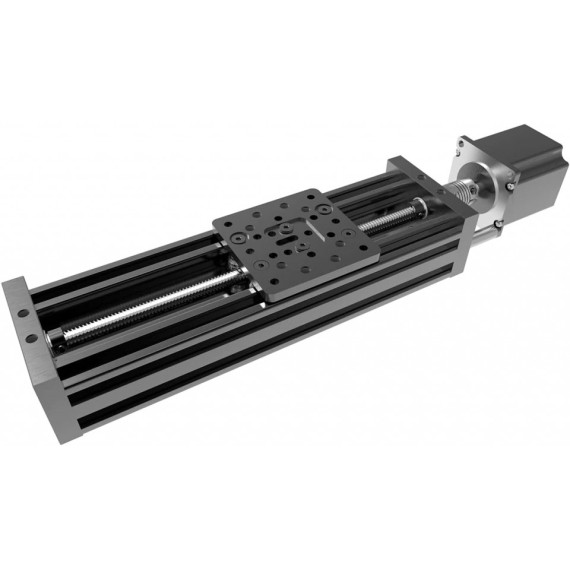

Linear Actuator Bundle 500mm Black with NEMA23 Motor (Assembled)

από OEM
The C-Beam Actuator Kit is an actuator driven by lead screw. The kit is an easy way to get all the pieces needed for the build. This C-Beam Linear...
14-00012906
Ογκομετρικό βάρος: 2kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
99.90
Χωρίς ΦΠΑ 80.56
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 79.92

ΠΕΡΙΓΡΑΦΗ

The C-Beam Actuator Kit is an actuator driven by lead screw.

The kit is an easy way to get all the pieces needed for the build.

This C-Beam Linear Actuator will provide you with access to utilize the power of beams in your Builds!

This kit combines the unique C-Beam linear rail with the C-Beam end mounts and gantry plate, plus other v-slot components, to make a simple linear actuator. This linear actuator can be used on a CNC machine, 3D printer, or even as a compact camera slider.

C-Beam has added strength through a C-Shape profile, and utilise the V-Slot system on all sides. This allows you to use V-Slot and C-Beam hand in hand on the same machine.

In this linear actuator kit, an Lead screw system is used, driven by a NEMA23 stepper motor. This combination gives you a lot of power and precise movements.

The linear actuator is available in standard lengths of 250mm / 500mm.

The length of the linear actuator is not the travel distance. The travel distance is calculated by subtracting 100mm from the length. The standard lengths above will have travel distances of 150mm / 400mm.



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 4x Low Profile Screws M5 – 25mm
  • 10x Low Profile Screws M5 - 20mm
  • 2x Low Profile Screws M5 - 55mm
  • 2x Aluminum Spacers - 6mm
  • 2x Aluminum Spacers - 40mm
  • 1x 1/4" x 8mm Flexible Coupling
  • 2x Aluminum Spacers - 3mm
  • 2x Eccentric Spacer - 6mm
  • 2x Ball Bearing 688Z 8x16x5
  • 2x 8mm Shim
  • 2x Lock Collar - 8mm
  • 4x Xtreme Mini V Wheel Kit
  • 2x C-Beam End Mount
  • 1x C-Beam Gantry Plate
  • 1x Anti-Backlash Nut Block
  • 1x C-Beam Linear Rail - 500mm
  • 1x 8mm Metric Acme Lead Screw - 540mm
  • 1x Stepper Motor NEMA23

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
2kg
Χώρα Προέλευσης:
Κίνα
Σειρά:
  • C-Beam
Προφίλ:
  • 4080
Μήκος (±1mm):
  • 500mm
Υλικό:
Aluminium

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Actuator Specs:
    • Travel for the 500mm version is 400mm
  • C-Beam Specs:
    • Material: Aluminium 6063 T5
    • Coating: Black Anodized
    • Pre-Tapped 4 Holes Ready to Accept C-Beam End Mounts
    • Color: Black
  • Stepper Motor Specs:
    • Step Angle(degrees): 1.8
    • 2-Phase
    • Voltage: 12V
    • Rated Current: 2A/Phase
    • Drive Shaft Diameter: 6.35mm
    • Holding Torque: 1.29 N.M
    • Form factor: NEMA 23
    • Wire Leads: 4 wires
