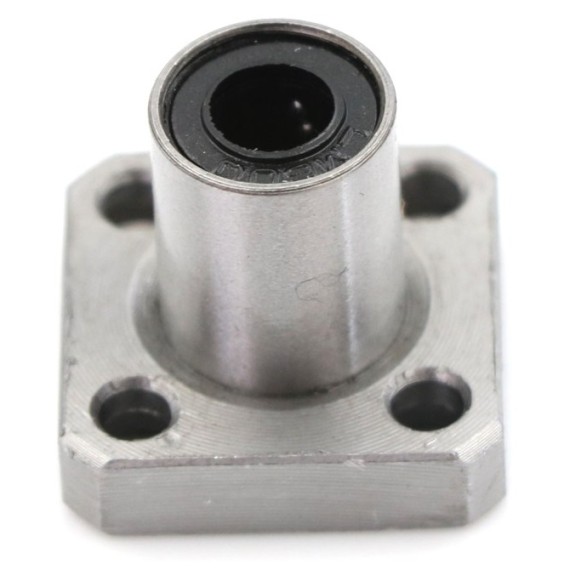

Linear Ball Bearing Flanged 6mm - LMK6UU

by OEM
Make your robot or CNC move on rails super fast with a linear bearing platform. The platform is 22mm x 22mm and has four holes M3.5mm machine screws so you...
14-00015100
Gross Weight: 0.02kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
2.90
Without VAT 2.34
+
WISHLIST COMPARE

DESCRIPTION

Make your robot or CNC move on rails super fast with a linear bearing platform. The platform is 22mm x 22mm and has four holes M3.5mm machine screws so you can attach pretty much anything you want.

SPECIFICATIONS

Type :
Linear
Inner Diameter / Bore:
6mm
Lubrication:
Oil
Material:
Chrome Steel

SPECIFICATIONS

  • For 6mm linear railings
  • Material Chrome Steel (GCr15)
  • Dynamic Load rating: 274 N
  • Static Load rating: 392 N
  • Weight: 18 grams
  • Four ball races
