Αισθητήρας Φορτίου - 3kg

από OEM

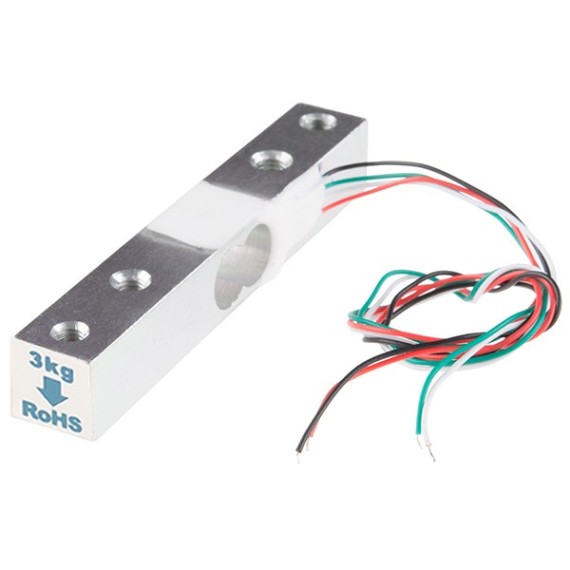

This load cell (sometimes called a strain gauge) can translate up to 3kg of pressure (force) into an electrical signal.
39-00013687
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
6.80
Χωρίς ΦΠΑ 5.48
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 5.44

ΠΕΡΙΓΡΑΦΗ

This load cell (sometimes called a strain gauge) can translate up to 3kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Each load cell is made from an aluminum-alloy and is capable of reading a capacity of 3kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation.

ΣΗΜΕΙΩΣΕΙΣ

  • The color code on the wiring is as follows: red = E+, white = O+, black = E-, and green = O-.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.001kg
Τύπος Αισθητήρα:
  • Δύναμης
Διασύνδεση:
  • Αναλογική
Πρωτόκολλο Eπικοινωνίας:
  • Χωρίς

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Easy to use
  • Driver voltage: 5-10V
  • Force variation output: voltage signal
  • Dimensions: 80x12.6x12.6mm
  • Sold per piece
