Metal DC Geared Motor w/Encoder - 12V 122RPM 38Kg.cm

από DFROBOT

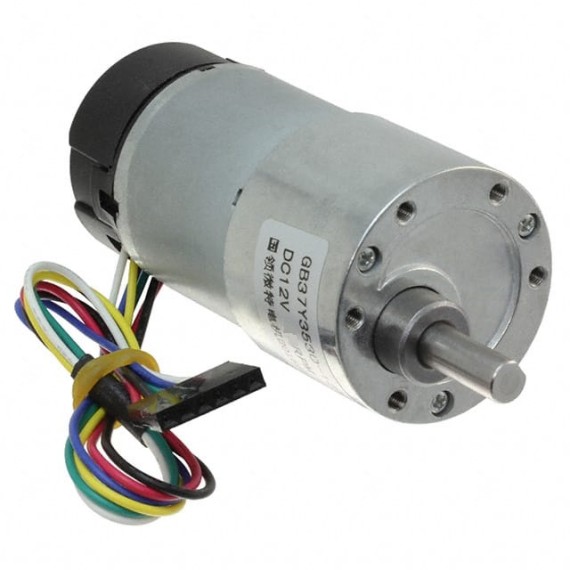

This is a Gear Motor w/Encoder, model No. GB37Y3530-12V-90EN. It is a powerful 12V motor with a 90:1 metal gearbox and an integrated quadrature encoder...
25-00016361
Ογκομετρικό βάρος: 0.05kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: FIT0403
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
36.00
Χωρίς ΦΠΑ 29.03
+

ΠΕΡΙΓΡΑΦΗ

This is a Gear Motor w/Encoder, model No. GB37Y3530-12V-90EN. It is a powerful 12V motor with a 90:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 16 counts per revolution of the motor shaft, which corresponds to 1440 counts per revolution of the gearbox’s output shaft.

These units have a 0.61" long, 6 mm-diameter D- shaped output shaft. This motor is intended for use at 12V, though the motor can begin rotating at voltages as low as 1V.

The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm apart.

This motor is an ideal option for your mobile robot project.



ΣΗΜΕΙΩΣΕΙΣ

  • Warning: Do not screw too far into the mounting holes as the screws can hit the gears. Manufacturer recommends screwing no further than 3mm (1/8") into the screw hole.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
FIT0403
Μικτό Βάρος:
0.05kg
Χώρα Προέλευσης:
Κίνα
Διάμετρος Κινητήρα:
37mm
Voltage (Range):
12Volt
Current (Stall):
7A
Ταχύτητα:
251RPM
Ροπή:
38kg.cm
Gearmotor Style:
Precision Spur
Υλικό Γραναζιών:
Μεταλλικά
Gearbox Ratio:
  • 90:1
Encoder:
Ναι

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Gear ratio: 90:1
  • No-load speed: 122+ 10% RPM
  • No-load current: 350mA
  • Start Voltage: 1.0V
  • Stall Torque: 38Kg.com
  • Stall Current: 7A
  • Insulation resistance: 20MΩ
  • EncoderOperating Voltage: 5V
  • Encoder type: Hall
  • Encoder Resolution: 16CPR(motor shaft)/1440CPR(gearbox shaft)
  • Weight: 205g
