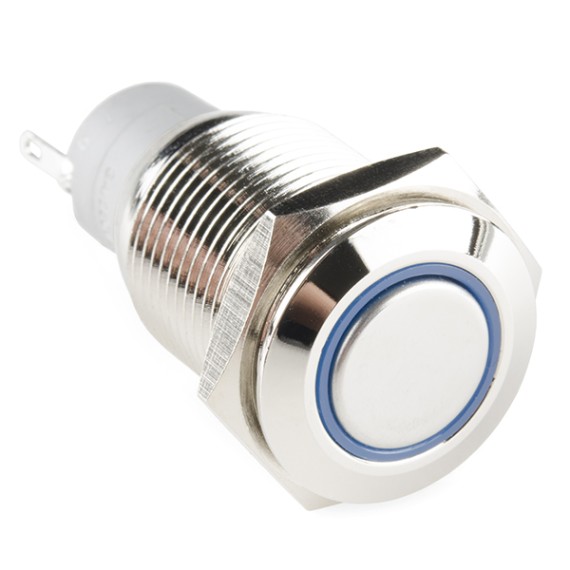

Metal Pushbutton - Latching (16mm, Blue)

05-00011972
Εξαντλημένο
1140
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated blue LED ring. It is a SPDT with 16mm threading and 1mm pitch.  This button is perfect for basic On/Off functions. Overall length (including leads) is 1.5" and has small solder lugs for connection. These latched buttons are rated up to 3A and 250VAC while the LED is rated for 12V.

  • Switch type vandal resistant
  • Stable positions number: 2-position
  • Contacts configuration: SPDT
  • AC contacts rating (at resistance load): 3 A / 250 VAC
  • DC contacts rating (at resistance load): 1 A / 24 VDC
  • Sealing: IP67
  • Switching method: ON-ON
  • Backlight colour: Blue
  • Leads for soldering
  • Operating temperature: -20...55°C
  • Electrical life: 200000cycles
  • Max. contact resistance: 50mΩ
  • Switching torque: 4N
  • Mechanical durability: 1000000cycles
  • Illumination: LED 12V DC, ring
  • Body colour: Silver
  • Body material: Stainless steel
  • Contact material: Silver alloy
Κατασκευαστής
ONPOW
Μικτό Βάρος
0.04kg
Διαμόρφωση Επαφών
  • SPDT
Μέθοδος Εναλλαγής
ON-ON
DC or AC Rating
3A / 250VAC
Επαφές για
Soldering
