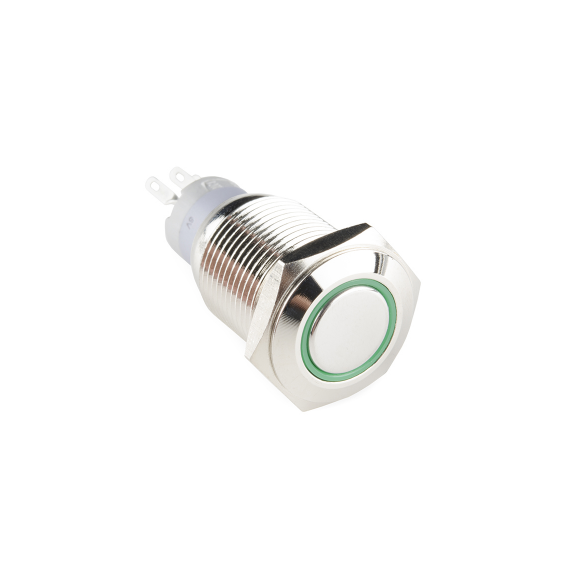

Metal Pushbutton - Momentary (16mm, Green)

από ONPOW
This is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount momentary switch with an illuminated green LED ring.
05-00011968
Ογκομετρικό βάρος: 0.04kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: ONPOW
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.60
Χωρίς ΦΠΑ 7.74
+

ΠΕΡΙΓΡΑΦΗ

This is a perfect choice if you are in need of a heavy duty push button! These metal push buttons are a very tough, small, panel-mount momentary switch with an illuminated green LED ring. It is a SPDT with 16mm threading and 1mm pitch. This button is perfect for basic On/Off functions. Overall length (including leads) is 1.5" and has small solder lugs for connection. These momentary buttons are rated up to 3A and 250VAC while the LED is rated for 12V.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
ONPOW
Μικτό Βάρος:
0.0398kg
Χώρα Προέλευσης:
Κίνα
Διαμόρφωση Επαφών
:
  • SPDT
Μέθοδος Εναλλαγής
:
ON-(ON)
DC or AC Rating:
0.5A / 250VAC
Επαφές για:
Soldering

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Switch type vandal resistant
  • Stable positions number: 1-position
  • Contacts configuration: SPDT
  • AC contacts rating (at resistance load): 0.5 A / 220 VAC
  • DC contacts rating (at resistance load): 1 A / 24 VDC
  • Sealing: IP67
  • Switching method: ON-(ON)
  • Backlight colour: Green
  • Leads for soldering
  • Operating temperature: -20...55°C
  • Electrical life: 50000cycles
  • Max. contact resistance: 50mΩ
  • Switching torque: 4N
  • Mechanical durability: 200000cycles
  • Illumination: LED 12V AC/DC, ring
  • Body colour: Silver
  • Body material: Stainless steel
  • Contact material: Silver alloy
