micro: Maqueen Plus V2 - STEM Robot Platform (18650 Battery)

από DFROBOT

Το Maqueen Plus είναι μια προηγμένη έκδοση του Maqueen, το οποίο είναι πιο ισχυρό και έξυπνο. Βελτιστοποιημένο με καλύτερη διαχείριση ισχύος και τροφοδοσία μεγαλύτερης χωρητικότητας, μπορεί να είναι απόλυτα συμβατό με το HuskyLens AI Vision Sensor, το οποίο το καθιστά ένα προσβάσιμο εργαλείο διδασκαλίας ρομπότ AI.

25-00016667
Ογκομετρικό βάρος: 0.6kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: MBT0021-EN-18650
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
69.90
Χωρίς ΦΠΑ 56.37
+

ΠΕΡΙΓΡΑΦΗ

What’s new in Maqueen Plus V2?

  1. Two versions to choose from: 4 AA battery and 18650 battery
  2. New plastic box with a deeper base, enough room for the assembled car
  3. Frosted acrylic protective plate at the bottom, more durable and reliable
  4. The number of Line-tracking sensors has changed from 6 to 5, more convenient to program and optimize line-tracking codes
  5. Employs the motors whose parameters are the same as previous Maqueen, running steadily and smoothly
  6. Changes ultrasonic sensor to SR04, easier to install
  7. Add 4 RGB ambient lights at the base, RGB car lights have been changed to LEDs
  8. Delete the less usable magnetic encoder

Maqueen Plus V2 is the latest version of the STEAM educational robot Maqueen Plus. Optimized with more expansion ports, larger capacity power supply, and larger body, it is fully compatible with more peripheral components like HuskyLens AI camera, Maqueen Mechanic Kits, which makes it an accessible STEAM robot teaching tool for primary and secondary students. Maqueen Plus V2 is not only suitable for classroom teaching, but also can be used for after-school extended exercises and robot competitions.

Besides all the functions of Maqueen Lite, it offers richer and more flexible functions and stronger performance. Whether you have ever used Maqueen Series products or not, you’ll find it very easy to get started.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1x micro:Maqueen Plus V2 (18650 Battery) Vehicle body x 1
          (Note: the motor, vehicle wheel, support wheel, and battery panel have been installed before delivery)
  • 1x H-SR04 Ultrasonic Sensor x 1
  • 2x Copper distance
  • 1x Line-tracking Map x 1

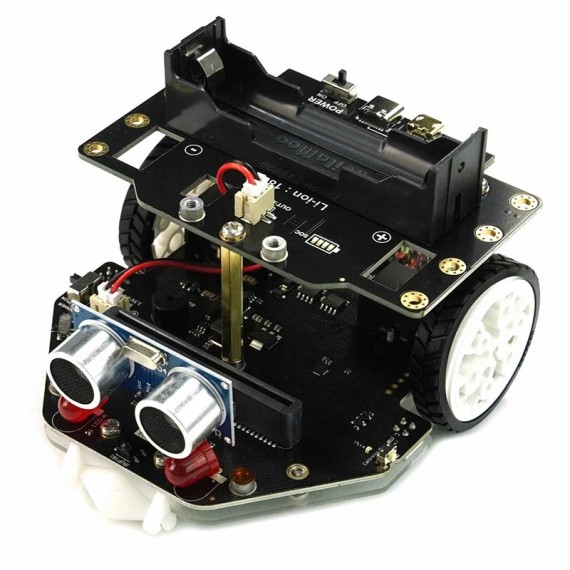

Maqueen Plus V2 robot circuit board

The robot is powered by one 18650 battery (not included). The Maqueen Plus V2 features five sensors for line tracking, which can be calibrated with the push of a button. In addition, the board has standard pin-outs with a 2.54 mm raster, such interfaces as: 14 x GPIO, 3 x I2C. The robot is fully compatible with the AI HuskyLens camera.



ΣΗΜΕΙΩΣΕΙΣ

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Ηλικία:
8+
Θέμα:
  • Maqueen Plus
  • micro:bit
Συμβατό Micro:bit:
  • V1
  • V2
Κατασκευαστής
:
DFROBOT
Part Number:
MBT0021-EN-18650
Μικτό Βάρος:
0.6kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power Supply:
    • MBT0021-EN-18650: 18650 Lithium battery (3.6V or 3.7V) x 1
      onboard charging circuit, MicroUSB and TYPE-C charging interfaces, 4 hours to charge fully
  • Support micro:bit V1 and V2
  • N20 All-metal Gear Motor x 2
  • Motor Reduction Ratio: 1:75
  • Motor Rated Rotation Speed: 266 rpm
  • Buzzer x 1
  • 5V IO (P0 P1 P2) x 3
  • 3.3V IO (P0 P1 P2 P8 P9 P12 P16) x 7
  • 3.3V I2C x 2
  • 5V I2C x 1
  • Large Size LED Car Lights x 2
  • RGB Ambient Lights x 4
  • Line-tracking Sensor x 5
  • Line-tracking Sensor with One-key Calibration
  • IR Receiver x 1
  • SRO4 Ultrasonic Module x 1
  • Dimension: 136mm×65mm/5.35×2.56"
  • Programming Platform: Mind+, MakeCode
  • Wiki Address:
  • MakeCode Library Address: https://github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20

ΔΥΝΑΤΟΤΗΤΕΣ

  • No complex assembly, get started in minutes
  • More IO expansion ports: 3.3V IO x7, 5V IO x3, I2C x3
  • 5 line-tracking sensors, reliable and flexible
  • Larger body, more flexible expansion methods
  • Two versions to choose from: AA battery and 18650 battery
        AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery
  • Works well with HuskyLens AI camera
  • Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.
  • Frosted acrylic protective plate at the bottom
  • Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car
