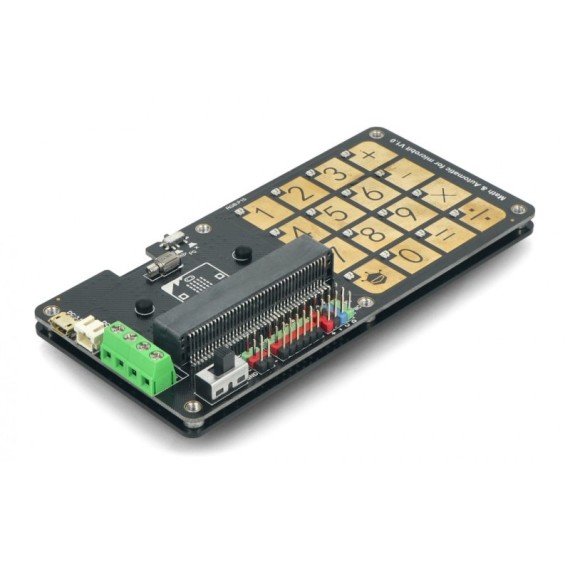

This is a Math & Automatic expansion board for micro:bit. Easy to use, and suitable for a wide range of applications. We designed this board for two sorts of application scenarios: math game and automation control.
The 16 programmable touch keys and RGB LEDs on the board offers rich function and flexible input and output.
Besides, the board has 1 vibration motor, 1 buzzer, 2 motor ports, 2 servo ports and 9 expansion ports, which lays a foundation for using in automation controlling application.
- Power Input: 3.5~5.5V DC
- Touch key x16
- RGB LED x16
- Buzzer x1
- Buzzer Switch x1
- Motor Port x2
- Servo Port x2
- I2C x2
- UART x1
- GPIO: P0, P1, P2, P8, P12, P16
- Program Platform: Mind+, makecode
- Size: 136x65mm
- Math Game:
- Calculator
- Quick Calculation
- Math Reasoning Game
- Lucky number
- Twenty-One
- Whack a Mole
- The mystery of Dazzling Numbers
More......
- Automatic Control:
- RGB Waterfall Light
- Touch Music
- Password Lock
- Motor Control System
- Touch Remote Wireless Handle
- Countdown Timer
- Natural wind Electric Fan
- NFC Password Entrance Guard
- 2.4G Multiplex Communication System
More......
