MP3 Player Mini Module

19-00090208
ΚατασκευαστήςOem
Διαθέσιμο
Αποστολή σε 24 ώρες
€680
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€5.44
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

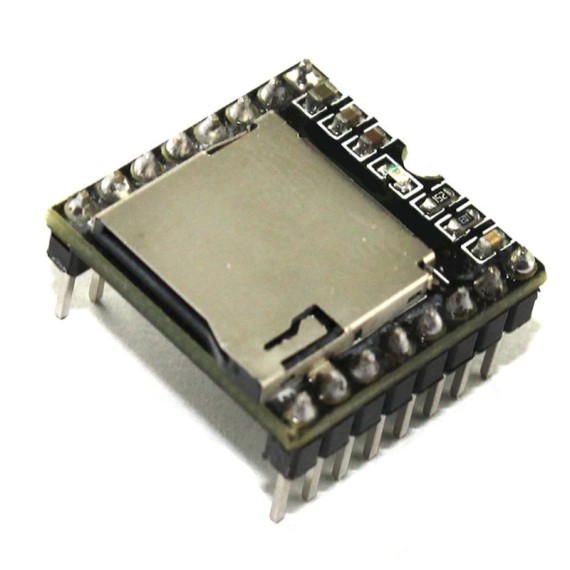

Sing for the moment! The MP3 Player Mini Module is a small and low-cost MP3 module player with a simplified output directly to the speaker. The module can be used as a stand-alone module with an attached battery, speaker, and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

It perfectly integrates the hard decoding module, which supports common audio formats such as MP3, WAV, and WMA. Besides, it also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.

ΣΗΜΕΙΩΣΕΙΣ

  • After assembling this circuit, you must add the songs on your memory card. In this step, the songs should be renamed as 01, 02, 03, for example. You cannot leave the songs with their names, as there will be a problem when the Arduino sends the command to execute the specific track.

  • Storage: Storage Card
  • Sound Channel: Mono
  • Analog U-disk Support: No
  • ADKEY Control Support: Yes
  • On-board Power Amplifier Support: Yes
  • Audio Format: MP3, WAV, WMA
  • Communication: UART
  • Operating Voltage: 3.3V/5V
  • Dimension: 20x20mm
  • Features:
    • Small size
    • Support IO, serial port and ADKEY control
    • Maximum support 8G of the TF card, suitable for occasions in need of abundant audio files
  • Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  • 24 -bit DAC output, support for dynamic range 90dB, SNR support 85dB
  • Fully supports FAT16, FAT32 file system, maximum support 8G of the TF card, support 16G of U disk, 64M bytes NOR FLASH
  • A variety of control modes, I/O control mode, serial mode, AD button control mode
  • Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
  • 30 level adjustable volume, 6 -level EQ adjustable
  • Car navigation voice broadcast;
  • Road transport inspectors, toll stations voice prompts;
  • Railway station, bus safety inspection voice prompts;
  • Electricity, communications, financial business hall voice prompts;
  • Vehicle into and out of the channel verify that the voice prompts;
  • The public security border control channel voice prompts;
  • Multi-channel voice alarm or equipment operating guide voice;
  • The electric tourist car safe driving voice notices;
  • Electromechanical equipment failure alarm;
  • Fire alarm voice prompts;
  • The automatic broadcast equipment, regular broadcast.
Κατασκευαστής
Oem
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Καθ. Βάρος
0.001kg
