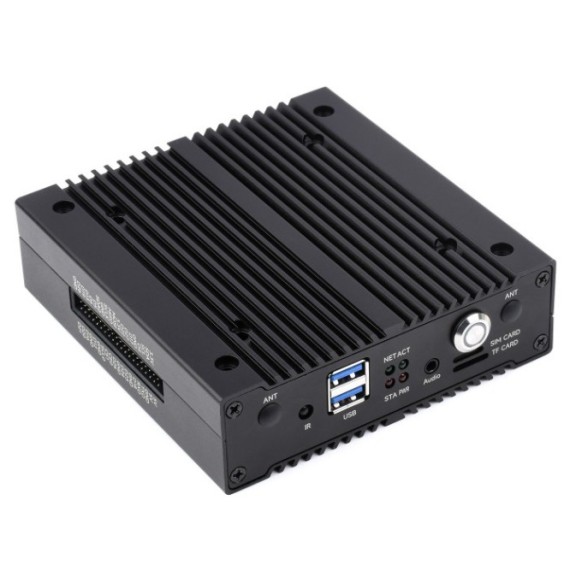

NAS Mini-Computer for CM4

Κωδικός:

31-00024678

Part Number: CM4-NVME-NAS-BOX

ΚατασκευαστήςWaveshare Part NumberCM4-NVME-NAS-BOX

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€112⁸⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€90.24

+ −

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

CM4 NAS Mini-Computer Kit
Designed For Raspberry Pi Compute Module 4

Network Storage | USB 3.2 | Dual Gigabit Ethernet ports | 4G

All-in-one Mini-Computer, mainly designed for home, small home office, etc.
Provides a simple and easy-to-use solution, no expert knowledge of networking and storage systems required
Onboard 2× M.2 M KEY slots for installing NVME Solid State Drives
Onboard MINI PCIE connector for installing 4G module
2× HDMI 4K output interfaces
Onboard USB3.2 ports, IR receiver, RTC, dual Gigabit Ethernet connectors, 3.5mm jack, etc.

Dual Solid State Drives Slots
Onboard 2× M.2 M KEY Slots, Support All Sizes Of NVME Solid State Drives (2230, 2242, 2260, 2280)

VESA Mounting Support
Supports 100×100mm And 75×75mm Standard VESA Holes

for reference only, the stand and display are NOT included.

Onboard Rich Interfaces

Precise Cut-Out With Clear Label
Each Cut-Out Is Completely Aligned With The Connector

Application Example
Supports Connecting With Multiple Peripheral Devices, Suitable For Various Application Scenarios.

for reference only, please check the Package Content for the detailed part list

Installation Instruction

*for reference only, the CM4 is NOT included.

CM4 Socket: Suitable for all variants of Compute Module 4
Networking:
- Gigabit Ethernet RJ45 connector × 2 (Original Network port ETH0, and PCIE extended Network port ETH1)
- MINI PCIE connector, supports 4G module (USB protocol, can not support PCIE protocol)
- Nano-SIM card slot, supports standard Nano-SIM card for 4G/3G/2G Internet access
M.2: Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280)
USB: USB 3.2 Gen1 (5Gbps) port× 2
CSI Camera: MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector
HDMI: HDMI × 2, supports 4K 30fps output
Audio: 3.5mm earphone/mic jack
RTC: Real-time clock with battery socket and ability to wake Compute Module 4
TF Card Slot: TF card socket for Compute Module 4 Lite (without eMMC) variants
Power Input: Type-C (5V 4A)
Dimension: 128×122×36mm
