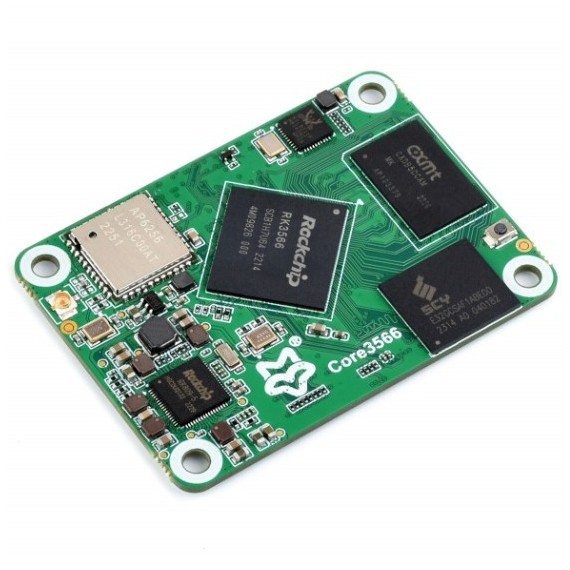

Core3566 Module CM4 Compatible - 2GB / 32GB eMMC Wireless

Κωδικός:

31-00024849

Part Number: Core3566102032

ΚατασκευαστήςLUCKFOX Part NumberCore3566102032

Διαθέσιμο

Αποστολή σε 24 ώρες

€55⁸⁰

+ −

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Available Options

Highly Integrated, Powerful Performance
Integrated With CPU, GPU, VPU, NPU, Etc.

RK3566 Quad-core 64-bit Cortex-A55 processor, frequency up to 1.8GHz, with 22nm process, features low power consumption and high performance
Integrated dual-core architecture ARM G52 GPU, high performance VPU and high efficiency NPU
The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1
The VPU can support 4K 60fps H.265/H.264/VP9 video decoding and 1080P 60fps H.265/ H.264 video encoding
The NPU with computing power of 0.8Tops supports one-click switching of mainstream frameworks like Caffe/TensorFlow

High Speed WiFi And Bluetooth
Dual-Band WiFi And Bluetooth AP6256 Module, Surf The Web Anywhere

Onboard Resources

WiFi function is optional, and an additional antenna is required for WiFi module since it has no onboard antenna.
Some interfaces such as USB2.0, HDMI, CSI, etc. are not compatible, please check our Wiki for details.

Processor: Quad-core Arm Cortex-A55 @1.8GHz
Memory: 2GB LPDDR4 SDRAM memory
Storage: 32GB eMMC Flash
NPU: 0.8 TOPS @INT8
GPU: Arm Mali-G52 2EE
Connectivity:
- Dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE, supports external antenna
- Supports IEEE 802.3 Gigabit Ethernet.
- USB 2.0 x1
- PCIe Gen 2 x1
- 28 GPIO signals
- SD card interface (booted from eMMC first)
Video:
- HDMI interface (4Kp60 supported)
- 2-lane MIPI DSI display interface x2
- 2-lane MIPI CSI camera interface x2
Multimedia: 4Kp60 H.264/H.265/VP9 (decode), 1080p60 H.264/H.265 (encode)
Operating Voltage: 5V DC
Operating Temp.: -10°C ~ 80°C ambient
Dimensions: 55x40x4.7mm
