Nicla Voice

από Arduino

Εφαρμόστε πάντα ενεργή αναγνώριση ομιλίας, με αισθητήρες που ακούν τι λέτε και έναν νευρωνικό επεξεργαστή για να καταλάβετε τι χρειάζεστε.

02-00011822
Ογκομετρικό βάρος: 0kg
Εγγύηση: 12 Μήνες Εγγύηση Κατασκευαστή
Κατασκευαστής: Arduino
Part Number: ABX00061
Χώρα Προέλευσης: Ιταλία
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
99.90
Χωρίς ΦΠΑ 80.56
+

ΠΕΡΙΓΡΑΦΗ

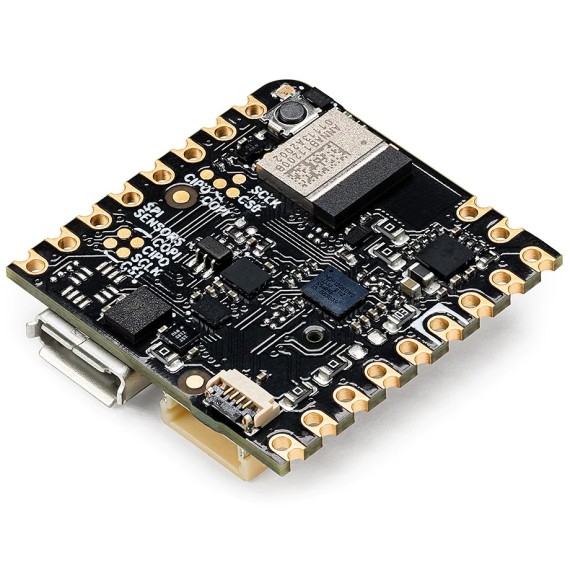

Το Nicla Voice 22.86x22.86mm επιτρέπει την εύκολη εφαρμογή της αναγνώρισης ομιλίας, επειδή ενσωματώνει τον ισχυρό επεξεργαστή NDP120 Neural Decision της Syntiant για την εκτέλεση πολλαπλών αλγορίθμων AI, αξιοποιώντας βιο-εμπνευσμένη, προηγμένη μηχανική μάθηση για αυτοματοποίηση σύνθετων εργασιών.

Το Nicla Voice συνοδεύεται από ένα ολοκληρωμένο πακέτο αισθητήρων: εκτός από το μικρόφωνό του, διαθέτει έναν έξυπνο αισθητήρα κίνησης 6 αξόνων και ένα μαγνητόμετρο, καθιστώντας το την ιδανική λύση για προγνωστική συντήρηση, αναγνώριση χειρονομιών/φωνών και ανεπαφικές εφαρμογές.

Το Nicla Voice προσφέρει ενσωματωμένη συνδεσιμότητα Bluetooth® Low Energy για εύκολη αλληλεπίδραση με υπάρχουσες συσκευές και είναι συμβατό με τα προϊόντα Nicla, Portenta και MKR.
Τέλος, η εξαιρετικά χαμηλή κατανάλωση ενέργειας καθιστά δυνατή την πάντα ενεργή 24/7 επεξεργασία δεδομένων αισθητήρα, με την επιλογή αυτόνομης λειτουργίας με μπαταρία.

Αρκετά μικρό ώστε να χωράει σε wearables ή να τοποθετεί εκ των υστέρων σε υπάρχοντα μηχανήματα, επιτρέποντας την τεχνητή νοημοσύνη αλλά απαιτεί ελάχιστη ενέργεια: Το Nicla Voice είναι ο «αδύνατος» συνδυασμός που κάνει την αναγνώριση φωνής δυνατή – και ευκολότερη από ποτέ.

Πλεονεκτήματα:

  • Ισχυρός επεξεργαστής με ενσωματωμένα Deep Neural Networks σε μικροσκοπικό παράγοντα (22.86x22.86mm)
  • Ενσωματωμένο μικρόφωνο, μαγνητόμετρο και smart IMU 6 αξόνων
  • Ενσωματωμένη συνδεσιμότητα Bluetooth® Low Energy
  • Προσθέστε δυνατότητες αναγνώρισης ομιλίας στα έργα σας
  • Εξαιρετικά χαμηλή ισχύς για επεξεργασία δεδομένων αισθητήρα 24/7, πάντα ενεργή
  • Αυτόνομο όταν λειτουργεί με μπαταρία
  • Συμβατό με προϊόντα Portenta και MKR

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
12 Μήνες Εγγύηση Κατασκευαστή
Κατασκευαστής
:
Arduino
Part Number:
ABX00061
Μικτό Βάρος:
0.04kg
Χώρα Προέλευσης:
Ιταλία

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Microprocessor:
    • Syntiant® NDP120 Neural Decision Processor™ (NDP):
      • 1x Syntiant Core 2™ ultra-low-power deep neural network inference engine
      • 1x HiFi 3 Audio DSP
      • 1x Arm® Cortex® M0 core up to 48 MHz
  • Microcontroller:
    • Nordic Semiconductor nRF52832:64 MHz Arm® Cortex M4
  • Sensors:
    • High performance microphone (IM69D130)
    • 6-Axis IMU (BMI270)
    • 3-axis magnetometer (BMM150)
  • I/O:
    • Castellated pins with the following features:
      • 1x I2C bus (with ESLOV connector)
      • 1x serial port
      • 1x SPI
      • 2x ADC
      • Programmable I/O voltage from 1.8-3.3V
  • Interface:
    • External microphone connector (ZIF)
    • USB interface with debug functionality
  • Memory:
    • 512KB Flash / 64KB SRAM
    • 16MB SPI Flash for storage
    • 48KB SRAM dedicated for NDP120
  • Dimensions: 22.86x22.86 mm
  • Weight: 2 g
  • Operating temperature: 0° C to +85° C (32° F to 185°F)
  • Power:
    • High speed USB (500mbps)
    • Pin Header
    • 3.7V Li-po battery with Integrated battery charger and fuel gauge (BQ25120AYFPR)
  • Connectivity: Bluetooth® Low Energy (ANNA-B112)

ΔΥΝΑΤΟΤΗΤΕΣ

Just say the word

Voice detection and voice recognition can change the way you interact with machines, systems and devices. With always-on sensors – courtesy of low power consumption – all you need is a wake word or trigger sound: no buttons to search for while you are driving, no interfaces to clutter your designs. And Nicla Voice not only hears everything, but understands what sounds mean: thanks to advanced neural processing, it can learn to interpret audio inputs such as passwords and commands.

Tiny but mighty

The Nicla family features Arduino Pro’s smallest form factor to date. This means Nicla Voice can easily be used to upgrade or retrofit existing machines and systems, and is particularly suitable for wearable products such as helmets and smart bands – also thanks to its long, battery-powered autonomy.

More than words

Nicla Vision can handle multiple applications simultaneously to recognize different speakers, pick up on multiple wake-up words and run keyword spotting at the same time. But there’s more than voice commands out there, of course. Nicla Voice can be trained to identify noisy bearings that require maintenance, glass shattering or intruders trying to enter, and more.

Peace and quiet

Nicla Voice lets you tune out in complete safety: integrated into smart headphones, it offers enhanced audio quality with echo-cancellation and noise-suppression features that allow users to focus on their job, spare their ears from loud industrial environments, yet still be warned immediately if an alarm sound is detected.

ΑΡΧΕΙΑ

ΒΙΝΤΕΟ

Arduino Pro Nicla Voice: Just Say the Word!

Implement always-on speech recognition on the edge with Nicla Voice. The board integrates Syntiant's NDP120 Neural Decision Processor™, enabling it to run multiple AI algorithms. In addition to its microphone, the tiny Nicla Voice features a smart six-axis motion sensor and a magnetometer, making it the ideal solution for ultra-low-power predictive maintenance, gesture/voice recognition and contactless applications.
