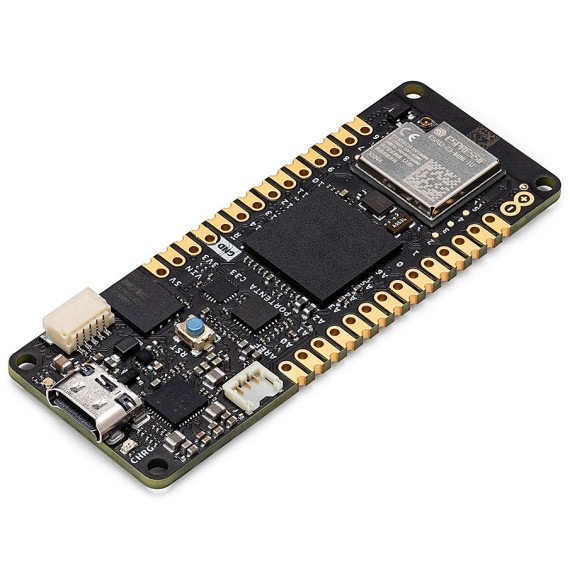

Portenta C33

από Arduino
Ένα οικονομικά αποδοτικό, βιομηχανικής ποιότητας, ασφαλές SOM για να κάνει το βιομηχανικό IoT προσβάσιμο σε όλους.
02-00011823
Ογκομετρικό βάρος: 0kg
Εγγύηση: 12 Μήνες Εγγύηση Κατασκευαστή
Κατασκευαστής: Arduino
Part Number: ABX00074
Χώρα Προέλευσης: Ιταλία
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
74.90
Χωρίς ΦΠΑ 60.40
+

ΠΕΡΙΓΡΑΦΗ

Το Portenta C33 είναι ένα βελτιωμένο module που προσφέρει την υψηλή απόδοση της οικογένειας Portenta σε χαμηλότερη τιμή, χάρη στις βελτιστοποιήσεις και τις βελτιστοποιημένες λειτουργίες.

Ιδανικό για την ανάπτυξη οικονομικά αποδοτικών εφαρμογών σε πραγματικό χρόνο, το Portenta C33 διαθέτει τον μικροελεγκτή Arm® Cortex®-M33 από τον παγκόσμιο ηγέτη Renesas και υποστηρίζει τη MicroPython και άλλες γλώσσες προγραμματισμού υψηλού επιπέδου. Χάρη στην ενσωματωμένη συνδεσιμότητα Wi-Fi® και Bluetooth® Low Energy, η μονάδα ξεχωρίζει ως ιδανική λύση για πύλες IoT, συστήματα τηλεχειρισμού, διαχείριση στόλου και παρακολούθηση διεργασιών.
Ενώ το ασφαλές στοιχείο του εγγυάται ασφάλεια βιομηχανικού επιπέδου σε επίπεδο υλικού, το Portenta C33 είναι επίσης σε θέση να εκτελεί ενημερώσεις υλικολογισμικού over-the-air με το Arduino IoT Cloud ή άλλες υπηρεσίες τρίτων.

Η γρήγορη ανάπτυξη έργων που υποστηρίζονται από AI γίνεται γρήγορη και εύκολη με το Portenta C33, αξιοποιώντας μια τεράστια γκάμα έτοιμων προς χρήση βιβλιοθηκών λογισμικού και διαθέσιμων Arduino sketches, καθώς και γραφικών στοιχείων που εμφανίζουν δεδομένα σε πραγματικό χρόνο σε Arduino IoT Cloud-based dashboards. Επιπλέον, ο παράγοντας μορφής της μονάδας είναι συμβατός με τις σειρές Portenta και MKR και διαθέτει castellated pins – έτοιμο για αυτόματες γραμμές συναρμολόγησης και πιο αποτελεσματικές συνδέσεις με άλλα εξαρτήματα.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
12 Μήνες Εγγύηση Κατασκευαστή
Κατασκευαστής
:
Arduino
Part Number:
ABX00074
Μικτό Βάρος:
0.04kg
Χώρα Προέλευσης:
Ιταλία
Μικροελεγκτής:
Renesas R7FA6M5BH2CBG Arm® Cortex®-M33
Τάση λειτουργίας:
3.3V
Τάση εισόδου:
5V

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Microcontroller Renesas R7FA6M5BH2CBG Arm® Cortex®-M33:
  • 1x  Arm® Cortex®-M33 core up to 200 MHz
  • 512 kB onboard SRAM
  • 2 MB onboard Flash
  • Arm TrustZone®
  • Secure Crypto Engine 9
External Memories 16 MB QSPI Flash
USB-C® USB-C® High Speed
Connectivity
  • 100Mb Ethernet interface (PHY)
  • Wi-Fi®
  • Bluetooth® Low Energy
Interfaces
  • CAN
  • SDCard
  • ADC
  • GPIO
  • SPI
  • I2S
  • I2C
  • JTAG/SWD
Security NXP® SE050C2 Secure Element
Operating Temperatures -40 °C to +85 °C (-40 °F to 185 °F)
Dimensions 66.04 mm x 25.40 mm

ΔΥΝΑΤΟΤΗΤΕΣ

Key benefits include:

  • Ideal for low-cost IoT applications with  Wi-Fi®/Bluetooth® LE connectivity
  • Supports MicroPython and other high-level programming languages
  • Offers industrial-grade security at the hardware level and secure OTA firmware updates
  • Leverages ready-to-use software libraries and Arduino sketches
  • Perfect to monitor and display real-time data on Arduino IoT Cloud widget-based dashboards
  • Compatible with Arduino Portenta and MKR families
  • Features castellated pins for automatic assembly lines

Cost Effective Performance

Reliable, secure and with computational power worthy of its range, Portenta C33 was designed to provide big and small companies in every field with the opportunity to access IoT and benefit from higher efficiency levels and automation.

Applications

Portenta C33 brings more applications than ever within users’ reach, from enabling quick plug-and-play prototyping to providing a cost-effective solution for industrial-scale projects.

Applications include:

  • Industrial IoT gateway
  • Machine monitoring to track OEE/OPE
  • Inline quality control and assurance
  • Energy consumption monitoring
  • Appliances control system
  • Ready-to-use IoT prototyping solution

For more information, see the Portenta C33 product page and feel free to get in touch with our Sales Engineers.
For full documentation and complete technical specs, visit Arduino Docs.

ΑΡΧΕΙΑ

ΒΙΝΤΕΟ

Portenta C33: The Cost-Effective, High-Performance Module That Makes IoT Accessible

Develop cost-effective, real-time applications with Portenta C33. Featuring an Arm® Cortex®-M33 microcontroller by Renesas, the module supports MicroPython and other high-level programming languages. Thanks to its onboard Wi-Fi® and Bluetooth® Low Energy connectivity, Portenta C33 is the ideal solution for IoT gateways, remote control systems, fleet management, and process tracking.
