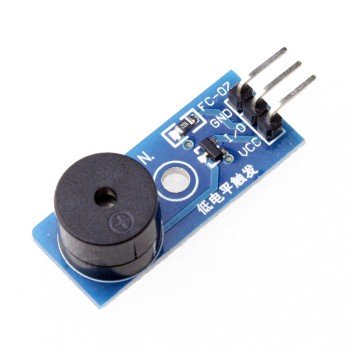

Passive Buzzer Module

by OEM
This buzzer module is passive because it does not have any internal electronics to generate a sound or tone. External electronics or a...
19-00010106
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
1.50
Without VAT 1.21
+
WISHLIST COMPARE

DESCRIPTION

This buzzer module is passive because it does not have any internal electronics to generate a sound or tone.

External electronics or a microcontroller based device, such as an Arduino, is needed to make the device produce a sound.

Because the device is passive, it acts more like a tiny loudspeaker than a buzzer.



SPECIFICATIONS

Πληροφορίες:
Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.

Notes

  • This module is a passive buzzer, not as a regular buzzer.
  • Low level trigger

EXTRA SPECIFICATIONS

  • Voltage: 3.3 - 5V
  • With fixed bolt hole: 3mm for easy installation
  • Module adopts 9012 transistor drive
  • No oscillation source, need square wave (frequency 2K-5K ) to drive
  • Sound frequency control, you can make a “do re mi fa sol la si” effect

Dimensions

  • Board: 33x13.2x10
  • Pitch of pins: 0.1"/2.54mm

Connection

  • VCC --> 3.3 - 5V
  • GND --> GND
  • I/O --> Digital Pin
