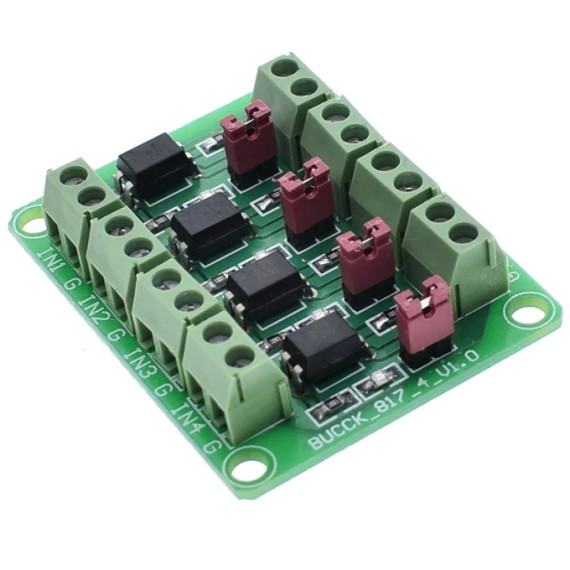

PC817 4-Channel Optocoupler Isolation Board

by OEM
This is a PC817 4-Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so can achieve different voltage control at the same...
19-00019824
Volumetric weight: 0.02kgs
Company: OEM
Made in: China
Out of Stock
Product out of stock
No stock in retail store
4.50
Without VAT 3.63

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

This is a PC817 4-Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.

Applications:

  • I/O isolation for MCUs (Micro Controller Units)
  • Noise suppression in switching circuits
  • Signal transmission between circuits of different potentials and impedances



NOTES

  • The port of entry is shared with GND.
  • The output ports are independent of each other.
  • It is exit optocoupler. V and G will connect after entering valid signal at the input port.
  • The terminals may differ in color and material.
  • The choice is random. Thanks for understanding.



EXTRA SPECIFICATIONS

  • Driving Port Signal Voltage: 3.6-24V
  • Output Port Voltage Port: 3.6-30V
  • Jumper cap can achieve output port is high potential Or pull down output
  • Dimensions: 48.2x38.3x12mm
  • Mounting: 4 Holes 3.6mm
