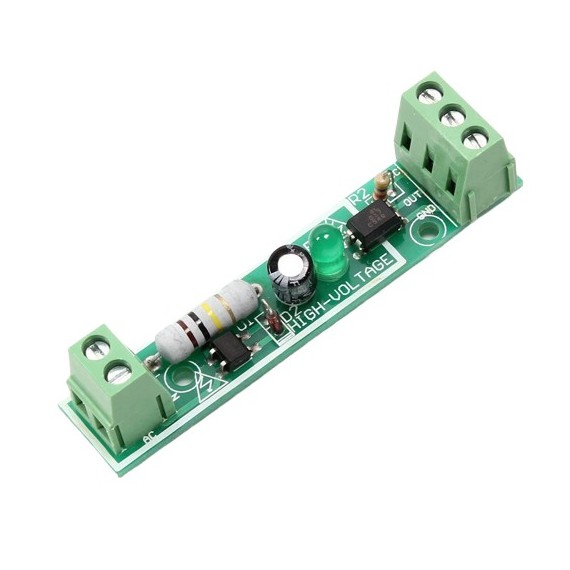

1-Channel Optocoupler Isolation Module Voltage Detection 220V AC

από OEM
1-Channel 220V AC optocoupler detection module. Function: can be used to detect the presence of 220V AC Output TTL level can be detected...
19-00019854
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: OEM
Χώρα Προέλευσης: Κίνα
Πληροφορίες: Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Διαθέσιμο
Αποστολή σε 24 ώρες
Διαθέσιμο στο φυσικό κατάστημα
3.80
Χωρίς ΦΠΑ 3.06
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+ 100+
Τιμή 3.04 2.66

ΠΕΡΙΓΡΑΦΗ

1-Channel 220V AC optocoupler detection module.

  • Function: can be used to detect the presence of 220V AC

Output TTL level can be detected with the microcontroller. The power supply can be 3-5V

Can also access PLC24V level. Then the PLC input terminal of the PLC COM power supply 24V input termination of the board signal output OUT, optocoupler board GND power negative.

Green 2P 5.0 terminal connected to 220V voltage, 3P terminal connected to the microcontroller input.



ΣΗΜΕΙΩΣΕΙΣ

  • When the power module in the power of the board after the white wire frame can not touch any device because it is high voltage.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
OEM
Μικτό Βάρος:
0.001kg
Χώρα Προέλευσης:
Κίνα
Breadboard Friendly
:
Οχι
Πληροφορίες:
Το προϊόν είναι εξάρτημα και δεν αποτελεί έτοιμη συσκευή.
Τύπος Αισθητήρα:
  • Ρεύματος
Πρωτόκολλο Eπικοινωνίας:
  • Χωρίς

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Functuon: Testing whether AC 220V is existed
  • Ouput TTL Level: Can use SCM to test,voltage is 3-5V
  • Adaptive to PLC 24V level
  • Dimensions: 73x15mm
