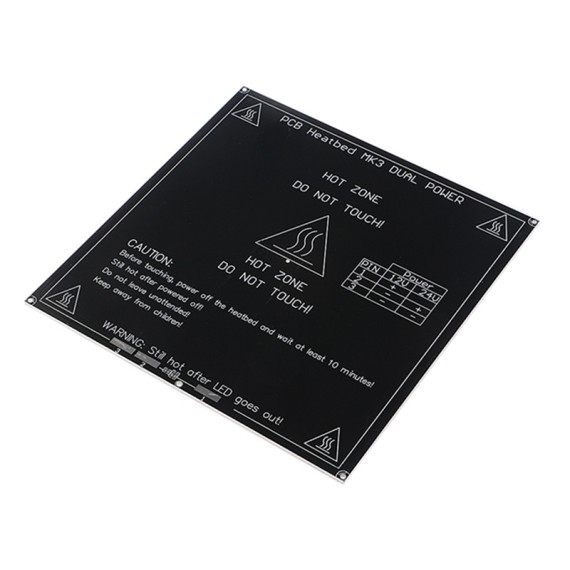

Aluminum Heatbed MK3

by OEM
The   ALU-Heatbed MK3   have features similar to MK2 and you can also operate this board with 12V or 24V. Heatbed with 3.1mm Aluminum Core. Print...
19-00012597
Company: OEM
Made in: China
Out of Stock
Product out of stock
No stock in retail store
20.90
Without VAT 16.85

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

The ALU-Heatbed MK3 have features similar to MK2 and you can also operate this board with 12V or 24V.

  • Heatbed with 3.1mm Aluminum Core. Print directly on the heatbed, no need for glass plate. It's a much lighter solution than PCB heatbed + glass, which makes it better for faster prints.
  • Dual power supply. Operate at 12V or 24V. You can use thinner wires when operating at 24V.
  • A central mounting hole on the front side to allow for three point mounting. This is much easier for bed leveling in comparison to 4 point mounting. First level the side with two holes and fix in place, then level the side with one hole.
  • Large solder pads for multiple wires (ribbon cable) or a SMD pinhead connector can be mounted.

Notes

  • Have presoldered cables for power supply.
  • Thermistor and other components not included.

EXTRA SPECIFICATIONS

  • 1 layer 35μm copper
  • SMD Leds presoldered for control
  • Recommended permanent heating 120°C
  • Max. Temp: 180° C
  • Heating Time: 24V reaches 100° C in 2 minutes
  • Powersupply 12V and 24V selectable by connectors
  • Power: 120W
  • Resistance: 1.4-1.6 Ohm at 12V, 5.0-5.4 Ohm at 24V
  • Based on the MK2A design of Josef Prusa
  • 5 holes 3mm for 3 or 4 point mounting
  • Material: Aluminum
  • Heating Area: 199 x 199mm
  • Color: Black

Dimensions

  • 199 x 199mm active heated area
  • 208 mm center-to-center mounting holes (outside the active area)
  • 213 x 213 mm total ALU size
  • Cable length: 55cm
  • Weight: 363gr

Connection

MK3 can choose 12V and 24V,

  • 12V: one line thread cross 1, another cross 2, 3
  • 24V: one line thread cross 2, another cross 3 (1 don't need to pick up).
